SR141-25

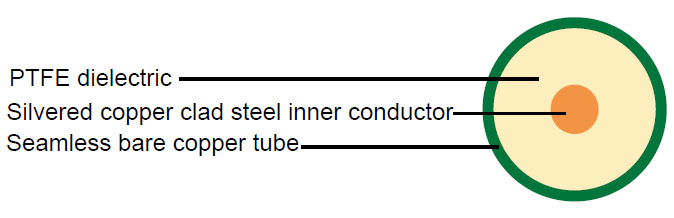

Construction :

  • Inner conductor Silver plated copper clad steel Φ1.63 mm
    Dielectric PTFE Φ2.98 ± 0.1 mm
    Outer conductor Seamless bare copper tube Φ3.58 ± 0.1 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance Nom.25 Ohm
    Nominal capacitance 190.4 pF/m
    Velocity of propagation -
    Insulation resistance - Mohm.Km
    Inner conductor resistance - Ohm/Km
    Outer conductor resistance - Ohm/Km
    Operating temperature range -55°C - +125 °C
    Outer conductor integrity temperature 175°C
    Min.bending radius 12.5 mm

Attenuation :

  • Frequency(MHz) Max. Attenuation(dB/100m) Max. Attenuation(dB/100ft)
    500 34 10.4
    1000 48 14.6
    5000 115 35.1
    10000 170 51.8
    20000 257 78.3
