SR141-35

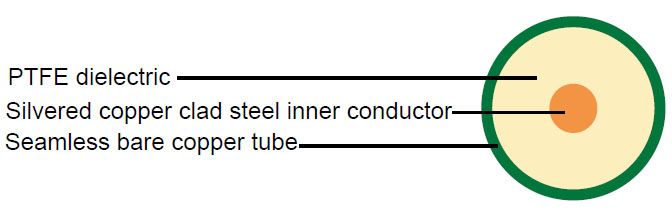

Construction :

  • Inner conductor Silver plated copper clad steel Φ1.29 mm
    Dielectric PTFE Φ2.98 ± 0.1 mm
    Outer conductor Seamless bare copper tube Φ3.68 ± 0.1 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance Nom.35 Ohm
    Nominal capacitance 136 pF/m
    Velocity of propagation -
    Insulation resistance - Mohm.Km
    Inner conductor resistance - Ohm/Km
    Outer conductor resistance - Ohm/Km
    Operating temperature range -55°C - +125 °C
    Outer conductor integrity temperature 175°C
    Min.bending radius 12.5 mm

Attenuation :

  • Frequency(MHz) Max. Attenuation(dB/100m) Max. Attenuation(dB/100ft)
    500 29 8.8
    1000 41 12.5
    5000 99 30.2
    10000 148 45.1
    20000 225 68.6
