KX 6

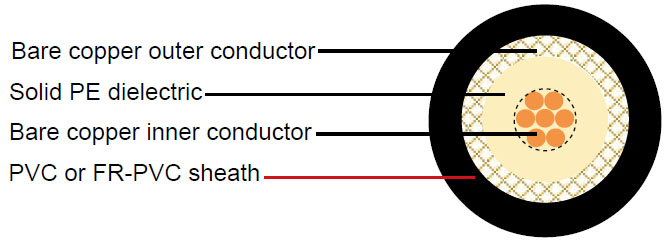

Construction :

  • Inner conductor Bare copper 7 x 0.2 mm
    Dielectric Solid PE Φ3.70 mm
    Outer conductor shield Bare copper /Copper clad Aluminum(CCA) 96x0.10 mm
    Shield coverage   80%
    Sheath PVC/FR-PVC Φ10.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 67 pF/m
    Velocity of propagation 66%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 87.5 Ohm/Km
    Outer conductor resistance 21.0 / 32.5 Ohm/Km
    Rated temperature 70°C
    Cable weight (approx.) - kg/km

Attenuation :

  • For bare copper braid For CCA braid
    Frequency
    (MHz)10    		 Attenuation
    (dB/100 m)5.0    		 Attenuation
    (dB/100 ft) 1.52    		 Frequency
    (MHz)    		 Attenuation
    (dB/100 m)    		 Attenuation
    (dB/100 ft)
    10 5.0 1.52 - - -
    50 8.1 2.47 50 8.1 2.47
    100 13.0 3.96 100 13.0 3.96
    200 18.5 5.64 200 18.5 5.64
    400 22.5 6.86 400 22.5 6.86
    850 34.5 10.52 850 34.5 10.52
    950 37.5 11.43 950 37.5 11.43
    1000 45.0 13.72 - - -

Return Loss :

  • 5-1000 MHz >20dB
