CTX 47 FLEX



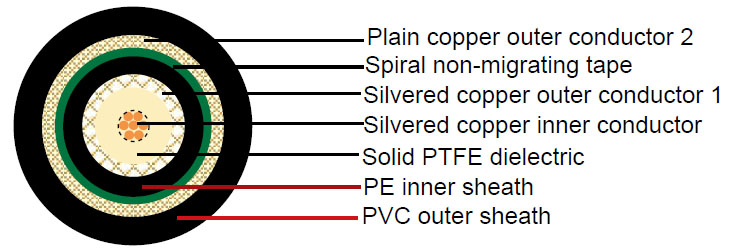

Construction :

  • Inner conductor Silver plated copper 7 x 0.40 mm
    Dielectric Foam PE Φ4.70 ± 0.10 mm
    Outer conductor (shield 1) Silver plated copper 168 x 0.13 mm
    Shield coverage   94%
    Inner sheath PE Φ6.60 ± 0.10 mm
    Tape Spiral non-migrating tape h. 20 mm
    Outer conductor (shield 2) Plain copper 192 x 0.15 mm
    Shield coverage   94%
    Outer sheath PVC/LSOH Φ8.70 ± 0.10 mm
  •
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 56 pF/m
    Velocity of propagation 80%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 20.5 Ohm/Km
    Outer conductor resistance1 7.3Ohm/Km
    Outer conductor resistance2 7.5 Ohm/Km
    Operating temperature range -25°C - +80 °C
    Copper weight 64.5 Kg/Km
    Cable weight (approx.) 116.1 Kg/Km
    Screening effectiveness >70 dB

Attenuation :

  • Frequency (MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft)
    50 5.2 1.6
    100 7.7 2.3
    200 10.9 3.3
    400 16.3 5.0
    500 19.0 5.8
    600 21.2 6.5
    860 26.1 8.0
    1000 28.5 8.7

Return Loss :

  • 30-300 MHz >27dB
    300-600 MHz >23dB
    600-900 MHz >20dB
