Tri-RG180

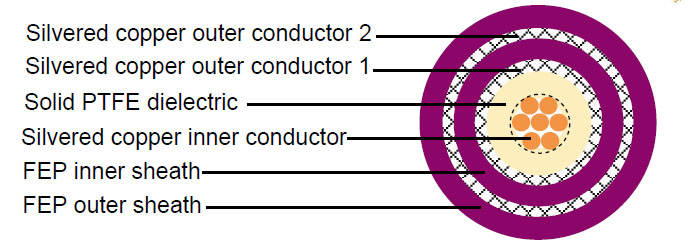

Construction :

  • Inner conductor Silver plated copper covered steel (SCCS) 7 x 0.10 mm
    Dielectric Solid PTFE Φ2.60 ± 0.10 mm
    Outer conductor (shield 1) Silver plated copper (0.1mm) Φ3.15 ± 0.10 mm
    Inner sheath FEP Φ3.60 ± 0.10 mm
    Outer conductor (shield 2) Silver plated copper (0.13mm) Φ4.40 ± 0.10 mm
    Outer sheath FEP Φ4.80 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance Nom.95±5 Ohm
    Nominal capacitance 50 pF/m
    Velocity of propagation 70%
    Insulation resistance - Mohm.Km
    Inner conductor resistance 800.5 Ohm/Km
    Outer conductor resistance 27.9 Ohm/Km
    Operatig Voltage(max) 1.0 KV
    Test Voltage
    Operating temperature range -55°C - +200 °C
    Cable weight (approx.) 53 Kg/Km
    Screening effectiveness >60 dB

Attenuation :

  • Frequency (MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft)
    100 21 6.4
    200 30 9.1
    400 43 13.1
    900 65 19.8
    1200 76 23.2
    1500 85 25.9
    1800 94 28.7
    2000 99 30.2
    2500 111 33.8
