Tri-RG316

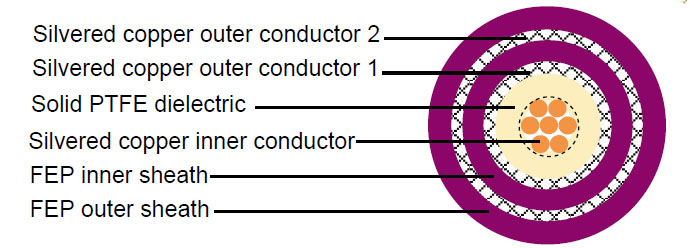

Construction :

  • Inner conductor Silver plated copper covered steel (SCCS) 7 x 0.17 mm
    Dielectric Solid PTFE Φ1.52 ± 0.10 mm
    Outer conductor (shield 1) Silver plated copper( 0.1mm) Φ2.05 ± 0.10 mm
    Inner sheath FEP Φ2.50 ± 0.10 mm
    Outer conductor (shield 2) Silver plated copper(0.1mm) Φ3.15 ± 0.10 mm
    Outer sheath FEP Φ3.60 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 94 pF/m
    Velocity of propagation 70%
    Insulation resistance - Mohm.Km
    Inner conductor resistance - Ohm/Km
    Outer conductor resistance - Ohm/Km
    Operatig Voltage(max) 1.0 KV
    Test Voltage
    Operating temperature range -55°C - +200 °C
    Cable weight (approx.) 31 Kg/Km
    Screening effectiveness >60 dB

Attenuation :

  • Frequency (MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft)
    100 27 8.2
    200 38 11.6
    400 54 16.5
    900 82 25.0
    1200 95 29.0
    1500 106 32.3
    1800 117 35.7
    2000 124 37.8
    2500 139 42.4
