Tri-RG400

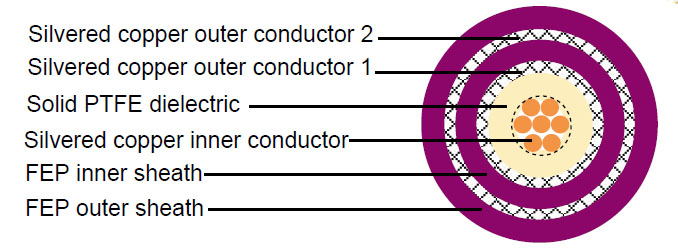

Construction :

  • Inner conductor Silver plated copper 19 x 0.20 mm
    Dielectric Solid PTFE Φ2.95 ± 0.10 mm
    Outer conductor (shield 1) Silver plated copper(0.13mm) Φ3.55 ± 0.10 mm
    Inner sheath FEP Φ4.30 ± 0.10 mm
    Outer conductor (shield 2) Silver plated copper (0.13mm) Φ4.90 ± 0.10 mm
    Outer sheath FEP Φ5.70 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 94 pF/m
    Velocity of propagation 70%
    Insulation resistance - Mohm.Km
    Inner conductor resistance - Ohm/Km
    Outer conductor resistance - Ohm/Km
    Operatig Voltage(max) 1.8 KV
    Test Voltage
    Operating temperature range -55°C - +200 °C
    Cable weight (approx.) 78 Kg/Km
    Screening effectiveness >60 dB

Attenuation :

  • Frequency (MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft)
    100 15 4.6
    200 22 6.7
    400 31 9.4
    900 47 14.3
    1200 55 16.8
    1500 62 18.9
    1800 68 20.7
    2000 72 21.9
    2500 81 24.7
