Tri-RG403

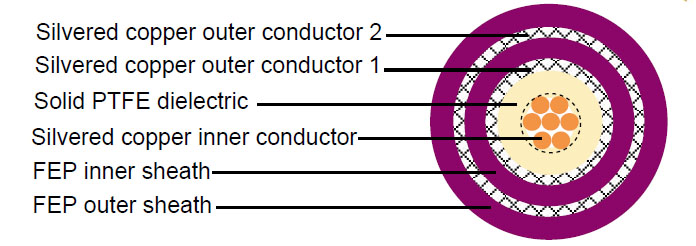

Construction :

  • Inner conductor Silver plated copper covered steel(SCCS) 7 x 0.10 mm
    Dielectric Solid PTFE Φ0.84 ± 0.10 mm
    Outer conductor (shield 1) Silver plated copper (0.1mm) Φ1.30 ± 0.10 mm
    Inner sheath FEP Φ1.90 ± 0.10 mm
    Outer conductor (shield 2) Silver plated copper (0.1mm) Φ2.35 ± 0.10 mm
    Outer sheath FEP Φ2.95 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 94 pF/m
    Velocity of propagation 70%
    Insulation resistance - Mohm.Km
    Inner conductor resistance - Ohm/Km
    Outer conductor resistance - Ohm/Km
    Operatig Voltage(max) 0.5 KV
    Test Voltage
    Operating temperature range -55°C - +200 °C
    Cable weight (approx.) 21 Kg/Km
    Screening effectiveness >60 dB

Attenuation :

  • Frequency (MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft)
    100 50 15.2
    200 67 20.4
    400 95 29.0
    900 145 44.2
    1200 165 50.3
    1500 185 56.4
    1800 204 62.2
    2000 215 65.5
    2500 240 73.2
