BS5308 Cable Part 1 Type 2 PE-IS-OS-SWA-PVC



Applications :

  • The armoured versions (Part 1 Type 2) are generally used when the risk of mechanical damage is increased. The galvanised steel wire armour provides excellent protection. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, typically in petroleum industry. The armored versions are generally use for outdoor installation for direct burial or installed in the duct and suitable for wet and damp areas.

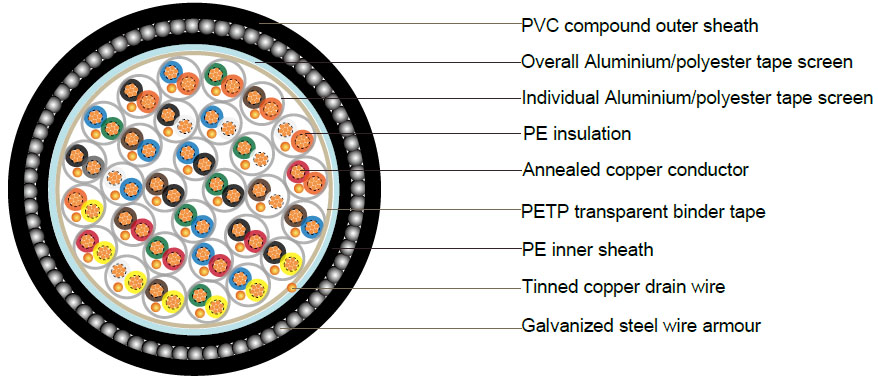

Construction :

  • Conductor Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5),0.5 mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm², multistranded(Class 2) to BS6360
    Insulation PE (Polyethylene) type 03 to BS6234
    Pairing Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
    Colour code See technical information
    Individual screen Aluminium/polyester tape is applied over each pair metallic side down in contact with
    tinned copper drain wire, 0.5mm²
    Binder tape PETP transparent tape
    Collective screen Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with
    tinned copper drain wire, 0.5mm²
    Inner Sheath PE (Polyethylene) type 2C or type 03 to BS6234
    Amour Galvanized steel wire armour
    Outer sheath PVC Sheath, type TM 1 to BS 6746
    Sheath colour Black or blue
  •

Mechanical and Electrical Properties :

  • Operating temperature : -40˚C up to + 70˚C( fixed installation) ; 0˚C to +50˚C(during operation ).
  • Minimum bending radius : 6 x overall diameter.
  • Conductor Area Size mm2 0.5 0.5 0.75 1.0 1.5
    Conductor Stranding No. x mm 1 x 0.8 16 x 0.2 24 x 0.2 1 x 1.13 7 x 0.53
    Conductor resistance max ohm/km 36.8 39.7 26.5 18.2 12.3
    Insulation resistance min Gohm/km 5 5 5 5 5
    Capacitance unbalance at 1kHz(pair to pair screen) pF/250m 250
    Max. Mutual Capacitance @ 1kHz forNon OS or OS cables (except one-pair and two-pairs) pF/m 115 115 115 115 120
    Max. Mutual Capacitance @1 kHz IS/OS cables (include 1pair and 2 pair) pF/m 75 75 75 75 85
    Max. L/R Ratio for adjacentcores(Inductance/Resistance) μH/ohm 25 25 25 25 40
    Test voltage Core to core V 1000 1000 1000 1000 1000
    Core to screen V 1000 1000 1000 1000 1000
    Rated voltage max V 300/500 300/500 300/500 300/500 300/500

Parameter :

  • No.of Pairs No.and Dia. of Wires Nominal Conductor Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of bedding Nominal Dia. over Bedding Nominal Thickness of Armour Nominal Thickness of Sheath Nominal Dia. of Cable Approx. Weight
    no./mm mm2 mm mm mm mm mm mm kg/km
    2 1/0.8 0.5 0.5 0.9 9.7 0.9 1.4 14.3 380
    5 1/0.8 0.5 0.5 1.2 13 1.25 1.5 18.5 640
    10 1/0.8 0.5 0.5 1.2 16.9 1.25 1.7 22.8 890
    15 1/0.8 0.5 0.5 1.3 19.7 1.6 1.7 26.3 1350
    20 1/0.8 0.5 0.5 1.3 22.3 1.6 1.8 29.1 1470
    30 1/0.8 0.5 0.5 1.5 27.1 1.6 1.9 34.1 1870
    50 1/0.8 0.5 0.5 2 35 2 2.2 43.4 3000
    2 16/0.2 0.5 0.6 1.1 11.2 0.9 1.5 16 460
    5 16/0.2 0.5 0.6 1.2 14.5 1.25 1.6 20.2 760
    10 16/0.2 0.5 0.6 1.3 19.3 1.6 1.8 26.1 1300
    15 16/0.2 0.5 0.6 1.5 22.6 1.6 1.8 29.4 1440
    20 16/0.2 0.5 0.6 1.5 25.7 1.6 1.9 32.7 1870
    30 16/0.2 0.5 0.6 1.7 31 2 2.1 39.2 2400
    50 16/0.2 0.5 0.6 2.2 39.9 2.5 2.4 49.7 3930
    2 24/0.2 0.75 0.6 1.1 12.1 0.9 1.5 16.9 500
    5 24/0.2 0.75 0.6 1.2 15.7 1.25 1.6 21.4 920
    10 24/0.2 0.75 0.6 1.3 20.9 1.6 1.7 27.5 1610
    15 24/0.2 0.75 0.6 1.5 24.6 1.6 1.9 31.6 1960
    20 24/0.2 0.75 0.6 1.5 27.9 1.6 1.9 34.9 2420
    30 24/0.2 0.75 0.6 2 34.4 2 2.2 42.8 3180
    50 24/0.2 0.75 0.6 2.2 43.5 2.5 2.5 53.5 4506
    2 1/1.13 1 0.6 1.1 11.9 0.9 1.5 16.7 515
    5 1/1.13 1 0.6 1.2 15.4 1.25 1.6 21.1 950
    10 1/1.13 1 0.6 1.3 20.5 1.6 1.8 27.3 1330
    15 1/1.13 1 0.6 1.5 24.1 1.6 1.9 31.1 1680
    20 1/1.13 1 0.6 1.7 27.7 2 2 35.7 2540
    30 1/1.13 1 0.6 2 33.7 2 2.2 42.1 2900
    50 1/1.13 1 0.6 2.2 42.5 2.5 2.5 52.5 4800
    2 7/0.53 1.5 0.6 1.2 13.6 1.25 1.6 19.3 730
    5 7/0.53 1.5 0.6 1.3 17.7 1.6 1.7 24.3 1180
    10 7/0.53 1.5 0.6 1.5 23.9 1.6 1.9 30.9 1820
    15 7/0.53 1.5 0.6 1.7 28 2 2 36 2350
    20 7/0.53 1.5 0.6 1.7 31.7 2 2.1 39.9 3030
    30 7/0.53 1.5 0.6 2 38.6 2 2.5 48.6 4050
    50 7/0.53 1.5 0.6 2.2 48.9 2 2.7 59.3 5960
