BS5308 Cable Part 1 Type 3 PE-OS-Lead-SWA-PVC



Applications :

  • The armoured versions (Part 1 Type 3) are generally used when the risk of mechanical damage is increased. The galvanised steel wire armour provides excellent protection. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, typically in petroleum industry. They are well adapted to underground use in industrial applications, in moist areas, where chemical and mechanical protections are needed. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

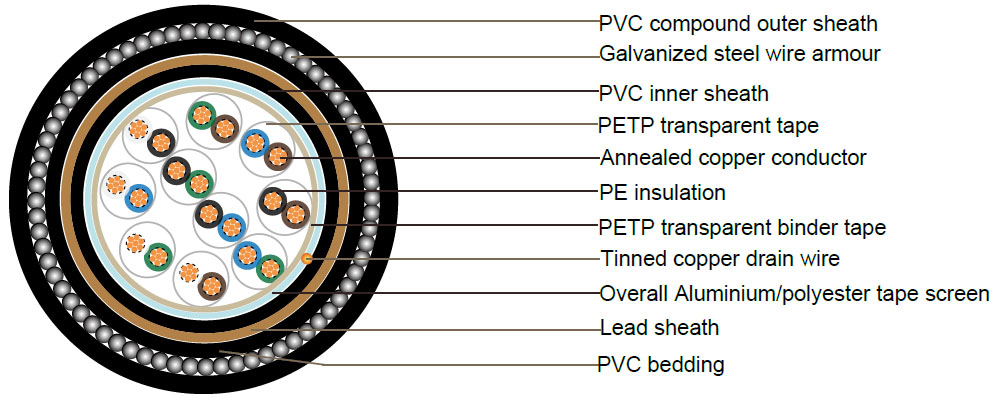

Construction :

  • Conductor Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 0.5 mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm², multistranded(Class 2) to BS6360
    Insulation PE (Polyethylene) type 03 to BS6234
    Pairing Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
    Colour code See technical information
    Binder tape PETP transparent tape
    Collective screen Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with
    tinned copper drain wire, 0.5mm²
    Inner Sheath PVC (polyvinyl chloride), type TM 1 or type 6 to BS 6746
    Lead Sheath Lead Alloy
    Bedding PVC (polyvinyl chloride), TM 1 to BS 6746
    Amour Galvanized steel wire armour
    Outer sheath PVC Sheath, type TM 1 or type 6 to BS 6746
    Sheath colour Black or blue
  •

Mechanical and Electrical Properties :

  • Operating temperature : -40˚C up to + 70˚C( fixed installation) ; 0˚C to +50˚C(during operation ).
  • Minimum bending radius : 15 x overall diameter.
  • Conductor Area Size mm2 0.5 0.5 0.75 1.0 1.5
    Conductor Stranding No. x mm 1 x 0.8 16 x 0.2 24 x 0.2 1 x 1.13 7 x 0.53
    Conductor resistance max ohm/km 36.8 39.7 26.5 18.2 12.3
    Insulation resistance min Gohm/km 5 5 5 5 5
    Capacitance unbalance at 1kHz(pair to pair screen) pF/250m 250
    Max. Mutual Capacitance@ 1 kHz forNon OS or OScables (except one-pair andtwo-pairs) pF/m 115 115 115 115 120
    Max. Mutual Capacitance @1 kHz IS/OS cables (include1 pair and 2 pair) pF/m 75 75 75 75 85
    Max. L/R Ratio for adjacentcores(Inductance/Resistance) μH/ohm 25 25 25 25 40
    Test voltage Core to core V 1000 1000 1000 1000 1000
    Core to screen V 1000 1000 1000 1000 1000
    Rated voltage max V 300/500 300/500 300/500 300/500 300/500

Parameter :

  • No.of Pairs No.and Dia. of Wires Nominal Conductor Cross Sectional Area Nominal Thickness of Insulation Nominal Dia. over Bedding Nominal Thickness of Armour Nominal Dia. of Cable Approx. Weight
    no./mm mm2 mm mm mm mm kg/km
    1 1/0.80 0.5 0.5 6.3 0.9 10.7 200
    2 1/0.80 0.5 0.5 7.1 0.9 11.5 260
    5 1/0.80 0.5 0.5 11.6 0.9 16.2 460
    10 1/0.80 0.5 0.5 15 1.25 20.7 790
    15 1/0.80 0.5 0.5 17.1 1.25 22.8 1100
    20 1/0.80 0.5 0.5 19.4 1.6 26 1280
    30 1/0.80 0.5 0.5 23 1.6 29.8 1520
    50 1/0.80 0.5 0.5 28.9 1.6 26.1 2100
    1 16/0.20 0.5 0.6 7 0.9 11.4 250
    2 16/0.20 0.5 0.6 7.9 0.9 12.3 300
    5 16/0.20 0.5 0.6 13.1 0.9 17.9 560
    10 16/0.20 0.5 0.6 17.2 1.25 22.9 970
    15 16/0.20 0.5 0.6 19.8 1.6 26.4 1240
    20 16/0.20 0.5 0.6 22.3 1.6 29.1 1640
    30 16/0.20 0.5 0.6 26.9 1.6 33.9 1770
    50 16/0.20 0.5 0.6 33.9 2 42.1 2770
    1 1/1.13 1 0.6 7.4 0.9 11.8 290
    2 1/1.13 1 0.6 8.4 0.9 13 345
    5 1/1.13 1 0.6 14.2 1.25 19.7 790
    10 1/1.13 1 0.6 17.4 1.25 24.3 1310
    15 1/1.13 1 0.6 21.3 1.6 28.1 1740
    20 1/1.13 1 0.6 24.4 1.6 31.2 2040
    30 1/1.13 1 0.6 29 1.6 36.2 2180
    50 1/1.13 1 0.6 37.3 2 45.7 3500
    1 7/0.53 1.5 0.6 8.3 0.9 12.9 320
    2 7/0.53 1.5 0.6 9.7 0.9 14.3 420
    5 7/0.53 1.5 0.6 16.4 1.25 22.1 940
    10 7/0.53 1.5 0.6 21.6 1.6 28.4 1500
    15 7/0.53 1.5 0.6 25.2 1.6 32.2 1970
    20 7/0.53 1.5 0.6 28.5 2 36.5 2400
    30 7/0.53 1.5 0.6 34.3 2 42.5 3170
    50 7/0.53 1.5 0.6 43.6 2.5 53.4 5020
