BS5308 Cable Part 2 Type 2 PVC-OS-SWA-PVC



Applications :

  • The armoured versions (Part 2 Type 2) are generally used when the risk of mechanical damage is increased. The galvanised steel wire armour provides excellent protection. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, typically in chemical or petrolchemical industry. The armored versions are generally use for outdoor installation for direct burial or installed in the duct and suitable for wet and damp areas.

Construction :

  • Conductor Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 1.5mm² multistranded(Class 2) to BS6360
    Insulation PVC (polyvinyl chloride), type TI1 to BS 6746
    Pairing Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
    Colour code Multicore cables: up to 40 cores yellow with black numbers, 41 - 80 cores black with yellow numbers. Multipair cables: See technical information
    Binder tape PETP transparent tape
    Collective screen Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with
    tinned copper drain wire, 0.5mm²
    Inner Sheath PVC (polyvinyl chloride), type TM 1 to BS 6746
    Amour Galvanized steel wire armour
    Outer sheath PVC Sheath, type TM 1 or type 6 to BS 6746
    Sheath colour Black or blue

Mechanical and Electrical Properties :

  • Operating temperature : -40˚C up to + 70˚C( fixed installation) ; 0˚C to +50˚C(during operation ).
  • Minimum bending radius : 6 x overall diameter.
  • Conductor Area Size mm2 0.5 0.75 1.5
    Conductor Stranding No. x mm 16 x 0.2 24 x 0.2 7 x 0.53
    Conductor resistance max ohm/km 39.7 26.5 12.3
    Insulation resistance min Mohm/km 25 25 25
    Max. Mutual Capacitance: pair or adjacent cores pF/m 250 250 250
    Capacitance between any core or screen max. pF/m 400 400 400
    Max. L/R Ratio for adjacent cores(Inductance/Resistance) μH/ohm 25 25 40
    Test voltage Core to core V 1000 1000 1000
    Core to screen V 1000 1000 1000
    Rated voltage max V 300/500 300/500 300/500

Parameter :

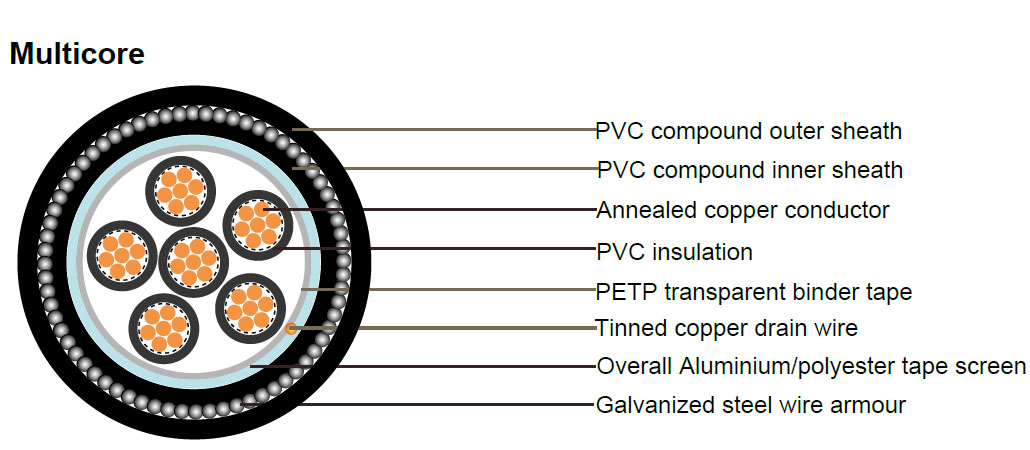

  • Multicore:
  • No.of Pairs No.and Dia. of Wires Nominal Conductor Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of bedding Nominal Dia. over Bedding Nominal Thickness of Armour Nominal Thickness of Sheath Nominal Dia. of Cable Approx. Weight
    no./mm mm2 mm mm mm mm mm mm kg/km
    2 16/0.2 0.5 0.6 0.8 6.7 0.9 1.3 11.1 255
    3 16/0.2 0.5 0.6 0.8 6.6 0.9 1.3 11.3 280
    4 16/0.2 0.5 0.6 0.8 7.2 0.9 1.3 11.6 305
    6 16/0.2 0.5 0.6 0.9 8.6 0.9 1.4 13.2 360
    10 16/0.2 0.5 0.6 14.1 11.2 0.9 1.5 16 510
    20 16/0.2 0.5 0.6 1.2 14.2 1.25 1.6 19.9 960
    40 16/0.2 0.5 0.6 1.3 18.7 1.6 1.7 25.3 1440
    80 16/0.2 0.5 0.6 1.5 25.8 1.6 1.9 32.8 2200
    2 24/0.2 0.75 0.6 0.8 7.2 0.9 1.3 11.2 280
    3 24/0.2 0.75 0.6 0.8 7.2 0.9 1.3 11.6 305
    4 24/0.2 0.75 0.6 0.8 7.8 0.9 1.3 12.4 335
    6 24/0.2 0.75 0.6 0.9 9.4 0.9 1.4 14 400
    10 24/0.2 0.75 0.6 1.1 12.2 0.9 1.5 17 565
    20 24/0.2 0.75 0.6 1.2 15.6 1.25 1.6 21.3 950
    40 24/0.2 0.75 0.6 1.3 20.6 1.6 1.7 27.4 1590
    80 24/0.2 0.75 0.6 1.5 28.5 1.6 1.9 35.7 2450
    2 7/0.53 1.5 0.6 0.8 8 0.9 1.4 12.6 330
    3 7/0.53 1.5 0.6 0.9 8.2 0.9 1.4 12.8 380
    4 7/0.53 1.5 0.6 0.9 9 0.9 1.4 13.6 420
    6 7/0.53 1.5 0.6 1.1 11 0.9 1.4 15.6 540
    10 7/0.53 1.5 0.6 1.2 14 1.25 1.6 19.7 750
    20 7/0.53 1.5 0.6 1.3 17.9 1.6 1.7 24.5 1260
    40 7/0.53 1.5 0.6 1.5 24 1.6 1.9 31 2140
    80 7/0.53 1.5 0.6 1.7 32.9 2 2.1 41.1 3300

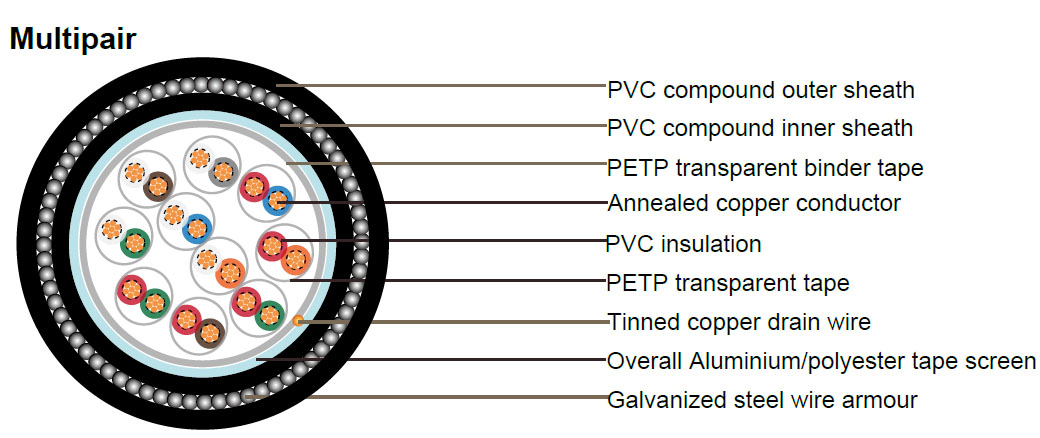

  • Multipair:
  • No.of Pairs No.and Dia. of Wires Nominal Conductor Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of bedding Nominal Dia. over Bedding Nominal Thickness of Armour Nominal Thickness of Sheath Nominal Dia. of Cable Approx. Weight
    no./mm mm2 mm mm mm mm mm mm kg/km
    1 16/0.2 0.5 0.6 0.8 6.2 0.9 1.3 10.6 260
    2 16/0.2 0.5 0.6 0.8 7.1 0.9 1.3 11.5 305
    5 16/0.2 0.5 0.6 1.1 12.4 0.9 1.5 17.2 610
    10 16/0.2 0.5 0.6 1.2 16.5 1.25 1.6 22.2 1060
    15 16/0.2 0.5 0.6 1.3 19.2 1.6 1.7 25.8 1330
    20 16/0.2 0.5 0.6 1.3 21.7 1.6 1.8 28.5 1800
    30 16/0.2 0.5 0.6 1.5 26.4 1.6 1.9 33.4 1980
    50 16/0.2 0.5 0.6 1.7 33.4 2 2.1 41.6 3070
    1 24/0.2 0.75 0.6 0.8 6.7 0.9 1.3 11.1 305
    2 24/0.2 0.75 0.6 0.8 7.7 0.9 1.4 12.3 360
    5 24/0.2 0.75 0.6 1.2 13.8 1.25 1.5 19.3 820
    10 24/0.2 0.75 0.6 1.3 18.4 1.6 1.7 25 1250
    15 24/0.2 0.75 0.6 1.3 21.1 1.6 1.8 27.9 1600
    20 24/0.2 0.75 0.6 1.5 24.4 1.6 1.8 31.2 1800
    30 24/0.2 0.75 0.6 1.7 29.6 2 2 37.6 2570
    50 24/0.2 0.75 0.6 2 37.4 2.5 2.3 47.3 3800
    1 7/0.53 1.5 0.6 0.8 7.5 0.9 1.4 12.1 360
    2 7/0.53 1.5 0.6 0.9 8.8 0.9 1.4 13.4 460
    5 7/0.53 1.5 0.6 1.2 15.6 1.25 1.6 21.3 1040
    10 7/0.53 1.5 0.6 1.3 20.9 1.6 1.8 27.7 1610
    15 7/0.53 1.5 0.6 1.5 24.6 1.6 1.9 31.6 2060
    20 7/0.53 1.5 0.6 1.5 27.8 1.6 2 35 2630
    30 7/0.53 1.5 0.6 1.7 33.7 2 2.1 41.9 3460
    50 7/0.53 1.5 0.6 2 43 2.5 2.4 52.8 5520
