Paper Insulated 11/11KV



Applications :

  • These cables are used as HV feeder cables in fixed conditions.

Standards :

  • AS/NZS 1972:2006



    AS/NZS 1125



    AS/NZS 3808

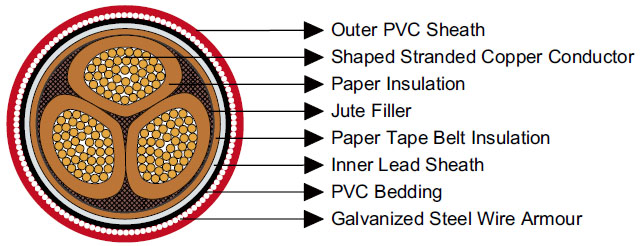

Construction :

  • Conductors Sector shaped stranded copper conductor.
    Insulation Paper tape.
    Filling Jute fillers.
    Insulation Paper tape belt insulation.
    Inner Sheath Lead sheath.
    Bedding PVC sheath.
    Armour Galvanized steel wire armour.
    Outer Sheath PVC sheath to AS/NZS 1026.

Dimensions and Weight :

  • Nominal
    Conductor
    Area
    Minimum Insulation Thickness Nominal
    Lead Sheath
    Thickness
    Armour Wire
    Diameter
    Nominal
    Sheath
    Thickness
    Nominal
    Overall
    Diameter
    Nominal
    Weight
    Between Weight
    Conductors
    Between
    Conductors and
    Lead Sheath
    mm² mm mm mm² mm mm mm kg/100m
    25 5.6 5.4 1.8 2.5 2.4 47.9 630
    35 5.6 5.4 1.8 2.5 2.5 50.3 695
    50 5.6 5.4 1.8 2.5 2.5 50.1 725
    70 5.6 5.4 1.9 2.5 2.6 53.5 855
    95 5.6 5.4 2.0 2.5 2.6 57.2 1000
    120 5.6 5.4 2.0 2.5 2.7 60.1 1120
    150 5.6 5.4 2.1 2.5 2.8 63.0 1260
    185 5.6 5.4 2.3 3.15 2.9 68.0 1540
    240 5.6 5.4 2.4 3.15 3.0 73.1 1820
    300 5.6 5.4 2.6 3.15 3.2 77.9 2120
    400 5.6 5.4 2.7 3.15 3.4 83.5 2500
