Type 210 1.1/1.1KV



Applications :

  • These cables are mainly used for hand-held boring machines and drills.

Standards :

  • AS/NZS 1802:2003



    AS/NZS 1125



    AS/NZS 3808



    AS/NZS 5000.1

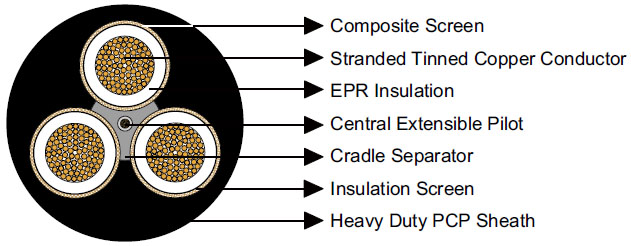

Construction :

  • 3×Conductors Flexible stranded tinned annealed copper conductor.
    Insulation EPR.
    Insulation Screen Semiconductive elastomer.
    Composite Screen (earth conductor) Tinned annealed copper braiding interwove with polyester yarn.
    Cradle Separator Semiconductive PCP
    1×Central Extensible Pilot EPR covered flexible stranded tinned copper conductor.
    Sheath Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.

Dimensions and Weight :

  • Nominal
    Conductor
    Area    		 Strand Size Insulation
    Thickness    		 Core Screen Pilot Conductor Thickness
    of Sheath    		 Nominal
    Overall
    Diameter    		 Nominal
    Weight
    Strand Size Area of
    Screen    		 Strand Size Thickness
    of Covering
    mm² No/mm mm No/mm mm² No/mm mm mm mm kg/100m
    Type 210
    1.5 30/0.25 1.4 7/0.25 5.2 24/0.20 0.8 3.0 23.7 83
    2.5 50/0.25 1.5 7/0.25 5.8 24/0.20 0.8 3.0 25.1 92
