Type 241 1.1 to 11KV



Applications :

  • These cables are designed for various uses, including main feeder cable for continuous miners, pump cable, and power supply cable. Overall semiconductive screen provides protective earth contact for any object breaching the sheath prior to contact with power conductors.

Standards :

  • AS/NZS 1802:2003



    AS/NZS 1125



    AS/NZS 3808



    AS/NZS 5000.1

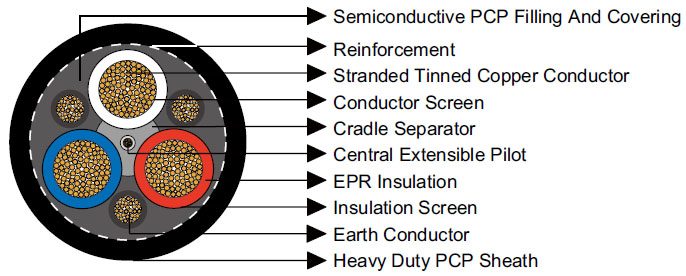

Construction :

  • 3×Conductors Flexible stranded tinned annealed copper conductor.
    Conductor Screen Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above).
    Insulation EPR.
    Insulation Screen Semiconductive elastomer.
    Cradle Separator Semiconductive PCP.
    Overall Core Screen Semiconductive PCP filling and covering.
    3×Interstitial Earth Conductor Semiconductive PCP covered flexible stranded tinned copper conductor.
    1×Central Extensible Pilot EPR covered flexible stranded tinned copper conductor.
    Textile Reinforcement Open-weave braid reinforcement.
    Sheath Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.

Dimensions and Weight :

  • Nominal
    Conductor
    Area    		 Strand Size Insulation
    Thickness    		 Core Screen Pilot Conductor Thickness
    of Sheath    		 Nominal
    Overall
    Diameter    		 Nominal
    Weight
    Strand Size Area of
    Screen    		 Strand Size Thickness
    of Covering
    mm² No/mm mm No/mm mm² No/mm mm mm mm kg/100m
    Type 241.1
    6 84/0.30 1.5 18/0.30 1.0 24/0.20 0.8 3.8 28.5 106
    10 77/0.40 1.5 27/0.30 1.0 24/0.20 0.8 3.8 31.1 127
    16 126/0.40 1.6 42/0.30 1.0 24/0.20 0.8 3.9 34.1 164
    25 209/0.40 1.6 66/0.30 1.0 24/0.20 0.8 4.2 37.9 208
    35 285/0.40 1.6 90/0.30 1.0 24/0.20 0.8 4.4 41.2 254
    50 380/0.40 1.7 120/0.30 1.0 40/0.20 0.8 4.9 45.9 328
    70 203/0.67 1.8 39/0.67 1.0 40/0.20 0.8 5.3 52.2 480
    95 259/0.67 2.0 39/0.67 1.0 40/0.20 0.8 5.8 56.7 600
    120 336/0.67 2.1 42/0.67 1.2 40/0.20 0.8 6.3 62.7 710
    150 427/0.67 2.3 54/0.67 1.2 40/0.20 0.8 6.7 68.3 865
    185 518/0.67 2.5 63/0.67 1.4 40/0.20 0.8 7.3 74.9 1030
    240 672/0.67 2.8 77/0.67 1.4 40/0.20 0.8 8.0 83.3 1300
    300 854/0.67 3.0 98/0.67 1.4 40/0.20 0.8 8.7 91.2 1600
    Type 241.3
    16 126/0.40 3.0 42/0.30 1.0 24/0.20 0.8 5.0 43.8 249
    25 209/0.40 3.0 66/0.30 1.0 24/0.20 0.8 5.3 47.7 315
    35 285/0.40 3.0 90/0.30 1.0 24/0.20 0.8 5.6 51.1 376
    50 380/0.40 3.0 120/0.30 1.2 40/0.20 0.8 6.0 55.2 450
    70 203/0.67 3.0 39/0.67 1.2 40/0.20 0.8 6.4 60.3 576
    95 259/0.67 3.0 48/0.67 1.2 40/0.20 0.8 6.8 63.8 675
    120 336/0.67 3.0 60/0.67 1.2 40/0.20 0.8 7.2 69.1 810
    150 427/0.67 3.0 77/0.67 1.2 40/0.20 0.8 7.6 73.8 952
    185 518/0.67 3.0 91/0.67 1.4 40/0.20 0.8 8.0 79.2 1130
    240 672/0.67 3.0 112/0.67 1.4 40/0.20 0.8 8.6 86.0 1380
    300 854/0.67 3.0 144/0.67 1.4 40/0.20 0.8 9.1 92.6 1660
    Type 241.6
    16 126/0.40 5.0 42/0.30 1.4 24/0.20 0.8 6.1 54.9 365
    25 209/0.40 5.0 66/0.30 1.4 24/0.20 0.8 6.4 58.8 440
    35 285/0.40 5.0 90/0.30 1.4 24/0.20 0.8 6.7 62.2 509
    50 380/0.40 5.0 120/0.30 1.4 40/0.20 0.8 7.1 66.2 592
    70 203/0.67 5.0 39/0.67 1.4 40/0.20 0.8 7.4 71.2 727
    95 259/0.67 5.0 48/0.67 1.4 40/0.20 0.8 7.9 74.8 835
    120 336/0.67 5.0 60/0.67 1.4 40/0.20 0.8 8.3 80.2 990
    150 427/0.67 5.0 77/0.67 1.4 40/0.20 0.8 8.6 84.6 1140
    185 518/0.67 5.0 91/0.67 1.4 40/0.20 0.8 9.0 90.0 1311
    240 672/0.67 5.0 119/0.67 1.4 40/0.20 0.8 9.6 96.8 1576
    300 854/0.67 5.0 156/0.67 1.4 40/0.20 0.8 10.2 103.6 1900
    Type 241.11
    25 209/0.40 7.6 66/0.30 1.8 24/0.20 0.8 7.8 73.2 645
    35 285/0.40 7.6 90/0.30 1.8 24/0.20 0.8 8.1 76.6 724
    50 380/0.40 7.6 120/0.30 1.8 40/0.20 0.8 8.5 80.6 825
    70 203/0.67 7.6 39/0.67 1.8 40/0.20 0.8 8.9 85.7 975
    95 259/0.67 7.6 48/0.67 1.8 40/0.20 0.8 9.3 89.1 1088
    120 336/0.67 7.6 60/0.67 1.8 40/0.20 0.8 9.7 94.4 1258
    150 427/0.67 7.6 77/0.67 1.8 40/0.20 0.8 10.0 98.9 1423
    185 518/0.67 7.6 91/0.67 1.8 40/0.20 0.8 10.4 104.2 1610
