Type 260 1.1 to 11KV



Applications :

  • These armoured cables are mainly used as feeder cables for power supply where mechanical protection and strength is required, and also can be the feeder to machinery and i.e. transportable mining substation (sand mining).

Standards :

  • AS/NZS 1802:2003



    AS/NZS 1125



    AS/NZS 3808



    AS/NZS 5000.1

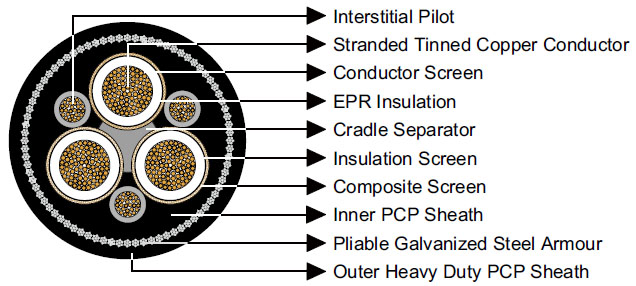

Construction :

  • 3×Conductors Flexible stranded tinned annealed copper conductor.
    Conductor Screen Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above).
    Insulation EPR.
    Insulation Screen Semiconductive elastomer.
    Composite Screen (earth conductor) Tinned annealed copper braiding interwove with polyester yarn.
    Cradle Separator Semiconductive PCP.
    3×Interstitial Pilot EPR covered flexible stranded tinned copper conductor.
    Inner Sheath PCP sheath. CPE/CSP sheath can be offered upon request.
    Pliable Armour Galvanized low carbon (mild) steel strands.
    Outer Sheath Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.

Dimensions and Weight :

  • Nominal
    Conductor
    Area    		 Strand
    Size    		 Insulation
    Thickness    		 Core Screen Pilot Conductor Pliable
    Armour
    Size    		 Thickness of
    Sheath    		 Nominal
    Overall
    Diameter    		 Nominal
    Weight
    Strand Size Area of
    Screen    		 Strand Size Thickness
    of Covering    		 Inner Outer
    mm² No/mm mm No/mm mm² No/mm mm No/mm mm mm mm kg/100m
    Type 260.1
    6 84/0.30 1.5 7/0.25 7.2 18/0.30 1.0 7/0.45 2.0 3.8 36.9 230
    10 77/0.40 1.5 7/0.25 8.6 27/0.30 1.0 7/0.45 2.0 3.8 39.5 265
    16 126/0.40 1.6 7/0.25 9.6 42/0.30 1.0 7/0.90 2.5 4.0 46.5 410
    25 209/0.40 1.6 7/0.25 11.3 66/0.30 1.2 7/0.90 2.5 4.3 50.4 495
    35 285/0.40 1.6 7/0.25 12.4 90/0.30 1.2 7/0.90 2.5 4.6 53.8 576
    50 380/0.40 1.7 7/0.25 14.1 120/0.30 1.2 7/0.90 2.5 5.0 58.4 679
    70 203/0.67 1.8 7/0.25 16.5 39/0.67 1.2 7/0.90 2.5 5.4 64.6 837
    95 259/0.67 2.0 7/0.25 18.2 39/0.67 1.2 7/0.90 3.5 6.0 71.4 1003
    120 336/0.67 2.1 7/0.25 20.3 42/0.67 1.4 7/0.90 3.5 6.4 77.2 1176
    150 427/0.67 2.3 7/0.25 22.3 54/0.67 1.4 7/0.90 3.5 6.9 83.0 1372
    185 518/0.67 2.5 7/0.30 30.2 63/0.67 1.4 7/0.90 3.5 7.4 90.0 1610
    240 672/0.67 2.8 7/0.30 33.6 77/0.67 1.6 7/1.25 4.5 8.2 103.0 2150
    300 854/0.67 3.0 7/0.40 50.1 98/0.67 1.6 7/1.25 4.5 8.8 112.1 2590
    Type 260.3
    16 126/0.40 3.0 7/0.25 13.1 42/0.30 1.4 7/0.90 2.5 5.3 56.9 566
    25 209/0.40 3.0 7/0.25 14.8 66/0.30 1.4 7/0.90 2.5 5.6 60.8 661
    35 285/0.40 3.0 7/0.25 15.8 90/0.30 1.4 7/0.90 3.5 5.9 66.3 779
    50 380/0.40 3.0 7/0.25 17.2 120/0.30 1.4 7/0.90 3.5 6.3 70.4 886
    70 203/0.67 3.0 7/0.25 18.6 39/0.67 1.4 7/0.90 3.5 6.6 75.3 1044
    95 259/0.67 3.0 7/0.25 20.3 39/0.67 1.4 7/0.90 3.5 7.1 78.9 1156
    120 336/0.67 3.0 7/0.30 27.2 42/0.67 1.6 7/0.90 3.5 7.4 84.7 1350
    150 427/0.67 3.0 7/0.40 39.6 54/0.67 1.6 7/1.25 4.5 7.8 95.0 1779
    185 518/0.67 3.0 7/0.40 42.2 63/0.67 1.8 7/1.25 4.5 8.2 100.4 1990
    240 672/0.67 3.0 7/0.40 46.6 77/0.67 1.8 7/1.25 4.5 8.8 107.3 2300
    300 854/0.67 3.0 7/0.50 63.2 98/0.67 1.8 7/1.25 4.5 9.4 115.4 2710
    Type 260.6
    16 126/0.40 5.0 7/0.25 17.2 42/0.30 1.4 7/0.90 3.5 6.4 70.1 796
    25 209/0.40 5.0 7/0.25 18.6 66/0.30 1.4 7/0.90 3.5 6.7 74.0 897
    35 285/0.40 5.0 7/0.25 18.6 90/0.30 1.6 7/0.90 3.5 7.0 77.4 990
    50 380/0.40 5.0 7/0.25 21.3 120/0.30 1.6 7/0.90 3.5 7.3 81.2 1102
    70 203/0.67 5.0 7/0.25 23.4 39/0.67 1.6 7/1.25 4.5 7.7 90.7 1456
    95 259/0.67 5.0 7/0.30 29.2 39/0.67 1.6 7/1.25 4.5 8.1 94.8 1610
    120 336/0.67 5.0 7/0.30 31.7 42/0.67 1.8 7/1.25 4.5 8.5 100.2 1807
    150 427/0.67 5.0 7/0.40 45.7 54/0.67 1.8 7/1.25 4.5 8.9 106.2 2080
    185 518/0.67 5.0 7/0.40 48.4 63/0.67 1.8 7/1.25 4.5 9.3 111.5 2300
    240 672/0.67 5.0 7/0.40 52.8 77/0.67 1.8 7/1.25 4.5 9.9 118.4 2630
    300 854/0.67 5.0 7/0.50 71.5 98/0.67 1.8 7/1.25 4.5 10.4 126.3 3060
    Type 260.11
    25 209/0.40 7.6 7/0.25 23.7 66/0.30 2.0 7/1.25 4.5 8.1 92.7 1380
    35 285/0.40 7.6 7/0.30 30.2 90/0.30 2.0 7/1.25 4.5 8.4 96.7 1528
    50 380/0.40 7.6 7/0.30 31.7 120/0.30 2.0 7/1.25 4.5 8.7 100.6 1664
    70 203/0.67 7.6 7/0.30 34.1 39/0.67 2.0 7/1.25 4.5 9.1 105.8 1867
    95 259/0.67 7.6 7/0.40 47.5 39/0.67 2.0 7/1.25 4.5 9.6 110.7 2080
    120 336/0.67 7.6 7/0.40 51.0 42/0.67 2.2 7/1.25 4.5 9.9 115.8 2290
    150 427/0.67 7.6 7/0.40 53.7 54/0.67 2.2 7/1.25 4.5 10.3 120.5 2510
    185 518/0.67 7.6 7/0.40 57.2 63/0.67 2.2 7/1.25 4.5 10.7 125.9 2750
