XLPE Insulated 6.35/11KV & 12.7/22KV



Applications :

  • These cables are used as HV feeder cables in fixed conditions.

Standards :

  • AS/NZS 1972:2006



    AS/NZS 1125



    AS/NZS 3808

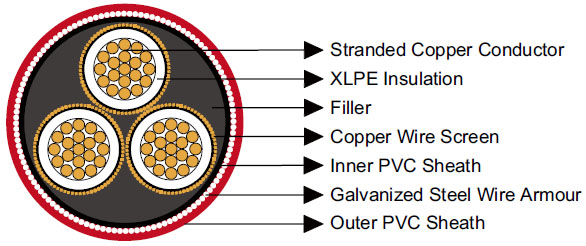

Construction :

  • Conductors Stranded plain copper conductor.
    Insulation XLPE.
    Individual Screen (earth conductor) Copper wire.
    Inner Sheath PVC sheath.
    Armour Galvanized steel wire armour.
    Outer Sheath PVC sheath to AS/NZS 1429.1.

Dimensions and Weight :

  • Nominal
    Conductor
    Area
    Nominal
    Conductor
    Diameter
    Insulation
    Thickness
    Core Screen Armour
    Wire
    Diameter
    Nominal
    Sheath
    Thickness
    Nominal
    Overall
    Diameter
    Nominal
    Weight
    Strand Size Area of
    Screen
    mm² mm mm mm mm² mm mm mm kg/100m
    6.35/11kV
    16 4.8 3.4 10/0.85 5.7 2.00 2.4 46.6 330
    25 5.8 3.4 10/0.85 5.7 2.50 2.5 50.1 415
    35 6.8 3.4 11/0.85 6.2 2.50 2.6 52.8 475
    50 8.0 3.4 15/0.85 8.5 2.50 2.7 55.7 540
    70 9.6 3.4 21/0.85 11.9 2.50 2.8 59.6 645
    95 11.5 3.4 29/0.85 16.5 2.50 2.9 63.9 775
    120 13.1 3.4 36/0.85 20.4 2.50 3.1 67.9 905
    150 14.5 3.4 44/0.85 25.0 2.50 3.2 71.5 1030
    185 16.1 3.4 22/1.35 31.5 3.15 3.3 78.6 1280
    240 18.5 3.4 29/1.35 41.5 3.15 3.5 84.7 1550
    300 20.7 3.4 37/1.35 53.0 3.15 3.7 90.4 1820
    400 23.6 3.4 47/1.35 67.3 3.15 4.0 97.9 2230
    12.7/22kV
    35 6.8 5.5 14/0.85 7.9 2.5 2.9 63.2 600
    50 8.0 5.5 15/0.85 8.5 2.5 3.0 66.0 665
    70 9.6 5.5 21/0.85 11.9 2.5 3.1 69.9 775
    95 11.5 5.5 29/0.85 16.5 2.5 3.3 74.4 920
    120 13.1 5.5 36/0.85 20.4 3.15 3.4 79.5 1140
    150 14.5 5.5 44/0.85 25.0 3.15 3.5 83.1 1280
    185 16.1 5.5 22/1.35 31.5 3.15 3.7 89.1 1450
    240 18.5 5.5 29/1.35 41.5 3.15 3.9 95.0 1720
    300 20.7 5.5 37/1.35 53.0 3.15 4.1 101.1 2010
    400 23.6 5.5 47/1.35 67.3 3.15 4.3 108.2 2420
