Applications :

• These cables are designed for connections between units of mine distribution systems, suitable for installed in duct, conduit or open air and for direct burial in wet and dry locations.

Standards :

• ICEA S-75-381/NEMA WC 58   ASTM B-8   CAN/CSA-C22.2 No.96

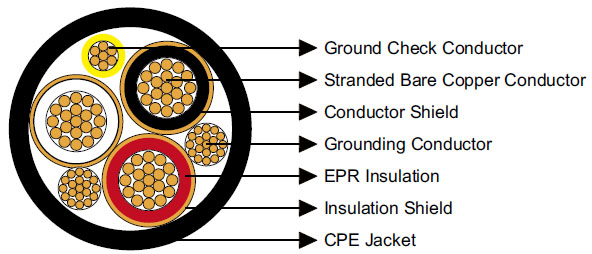

Construction :

• Conductor	Stranded annealed bare copper conductor.
  Conductor Shield	Conducting layer.
  Insulation	Ethylene Propylene Rubber (EPR).
  Insulation Shield	Conducting layer + copper tape.
  Ground Check Conductor	Copper conductor with a yellow polypropylene insulation.
  Grounding Conductor	Tinned copper conductor.
  Jacket	Chlorinated Polyethylene (CPE), black.

Options :

• Other jacket materials such as CSP/PCP/NBR/PVC/TPU are available upon request.

Mechanical and Thermal Properties :

• Minimum Bending Radius: 12×OD.
• Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

• Construction	No. of Strands	Grounding Conductor Size	Ground Check Conductor Size	Nominal Insulation Thickness		Nominal Jacket Thickness		Nominal Overall Diameter		Nominal Weight		Ampacity
  No. of cores ×AWG/kcmil	-	AWG/ kcmil	AWG/ kcmil	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
  3×2	7	6	8	0.175	4.4	0.14	3.6	1.90	48.3	2517	3745	164
  3×1	19	5	8	0.175	4.4	0.14	3.6	1.99	50.6	3023	4498	187
  3×1/0	19	4	8	0.175	4.4	0.14	3.6	2.07	52.6	3296	4904	215
  3×2/0	19	3	8	0.175	4.4	0.14	3.6	2.16	54.9	3679	5474	246
  3×3/0	19	2	8	0.175	4.4	0.14	3.6	2.27	57.7	3878	5771	283
  3×4/0	19	1	8	0.175	4.4	0.14	3.6	2.39	60.7	5146	7656	325
  3×250	37	1/0	8	0.175	4.4	0.14	3.6	2.48	63.0	5618	8359	359
  3×350	37	2/0	8	0.175	4.4	0.14	3.6	2.70	68.6	7055	10496	438
  3×500	37	4/0	8	0.175	4.4	0.17	4.3	3.08	78.2	9405	13993	536

• Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
