Type MP-GC Three-Conductor Mine Power Feeder Cable, CPE Jacket, 5kV



Applications :

  • These cables are designed for connections between units of mine distribution systems, suitable for installed in duct, conduit or open air and for direct burial in wet and dry locations.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B-8



    CAN/CSA-C22.2 No.96

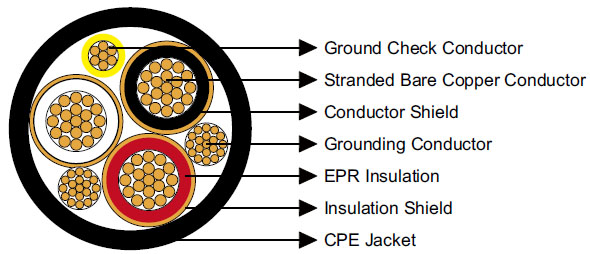

Construction :

  • Conductor Stranded annealed bare copper conductor.
    Conductor Shield Conducting layer.
    Insulation Ethylene Propylene Rubber (EPR).
    Insulation Shield Conducting layer + copper tape.
    Ground Check Conductor Copper conductor with a yellow polypropylene insulation.
    Grounding Conductor Tinned copper conductor.
    Jacket Chlorinated Polyethylene (CPE), black.

Options :

  • Other jacket materials such as CSP/PCP/NBR/PVC/TPU are available upon request.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 12×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands
    Grounding
    Conductor
    Size
    Ground
    Check
    Conductor
    Size
    Nominal Insulation
    Thickness
    Nominal Jacket
    Thickness
    Nominal Overall
    Diameter
    Nominal Weight Ampacity
    No. of cores
    ×AWG/kcmil
    - AWG/
    kcmil
    AWG/
    kcmil
    inch mm inch mm inch mm lbs/kft kg/km A
    3×6 7 10 8 0.09 2.3 0.11 2.8 1.30 33.0 1060 1577 93
    3×4 7 8 8 0.09 2.3 0.11 2.8 1.41 35.8 1441 2144 122
    3×2 7 6 8 0.09 2.3 0.11 2.8 1.47 37.3 1827 2718 159
    3×1 19 5 8 0.09 2.3 0.11 2.8 1.54 39.1 2168 3226 184
    3×1/0 19 4 8 0.09 2.3 0.11 2.8 1.63 41.4 2602 3871 211
    3×2/0 19 3 8 0.09 2.3 0.11 2.8 1.72 43.7 3010 4478 243
    3×3/0 19 2 8 0.09 2.3 0.14 3.6 1.89 48.0 3265 4859 279
    3×4/0 19 1 8 0.09 2.3 0.14 3.6 2.01 51.0 4190 6234 321
    3×250 37 1/0 8 0.09 2.3 0.14 3.6 2.10 53.3 4825 7179 355
    3×350 37 2/0 8 0.09 2.3 0.14 3.6 2.31 58.7 6062 9019 435
    3×500 37 4/0 8 0.09 2.3 0.14 3.6 2.59 65.8 8427 12538 536
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
