Type MP-GC Three-Conductor Mine Power Feeder Cable, CPE Jacket, 8kV



Applications :

  • These cables are designed for connections between units of mine distribution systems, suitable for installed in duct, conduit or open air and for direct burial in wet and dry locations.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B-8



    CAN/CSA-C22.2 No.96

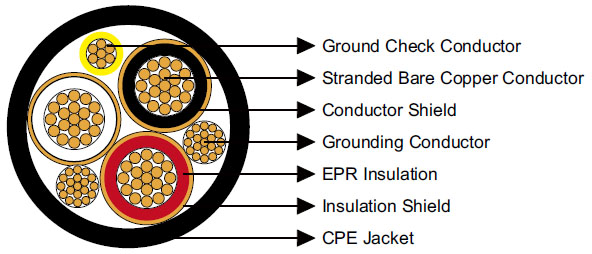

Construction :

  • Conductor Stranded annealed bare copper conductor.
    Conductor Shield Conducting layer.
    Insulation Ethylene Propylene Rubber (EPR).
    Insulation Shield Conducting layer + copper tape.
    Ground Check Conductor Copper conductor with a yellow polypropylene insulation.
    Grounding Conductor Tinned copper conductor.
    Jacket Chlorinated Polyethylene (CPE), black.

Options :

  • Other jacket materials such as CSP/PCP/NBR/PVC/TPU are available upon request.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 12×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands
    Grounding
    Conductor
    Size
    Ground
    Check
    Conductor
    Size
    Nominal Insulation
    Thickness
    Nominal Jacket
    Thickness
    Nominal Overall
    Diameter
    Nominal Weight Ampacity
    No. of cores
    ×AWG/kcmil
    - AWG/
    kcmil
    AWG/
    kcmil
    inch mm inch mm inch mm lbs/kft kg/km A
    3×6 7 10 8 0.115 2.9 0.11 2.8 1.41 35.8 1175 1749 93
    3×4 7 8 8 0.115 2.9 0.11 2.8 1.52 38.6 1608 2392 122
    3×2 7 6 8 0.115 2.9 0.11 2.8 1.58 40.1 1919 2855 159
    3×1 19 5 8 0.115 2.9 0.11 2.8 1.66 42.2 2507 3730 184
    3×1/0 19 4 8 0.115 2.9 0.11 2.8 1.74 44.2 2660 3958 211
    3×2/0 19 3 8 0.115 2.9 0.14 3.6 1.90 48.3 3257 4846 243
    3×3/0 19 2 8 0.115 2.9 0.14 3.6 2.00 50.8 3432 5107 279
    3×4/0 19 1 8 0.115 2.9 0.14 3.6 2.12 53.8 4382 6520 321
    3×250 37 1/0 8 0.115 2.9 0.14 3.6 2.22 56.4 4965 7387 355
    3×350 37 2/0 8 0.115 2.9 0.14 3.6 2.43 61.7 6484 9647 435
    3×500 37 4/0 8 0.115 2.9 0.14 3.6 2.70 68.6 8857 13178 536
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
