Type MP-GC Three-Conductor Mine Power Feeder Cable, PVC Jacket, 15kV



Applications :

  • These cables are designed for connections between units of mine distribution systems, suitable for installed in duct, conduit or open air and for direct burial in wet and dry locations.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B-8



    CAN/CSA-C22.2 No.96

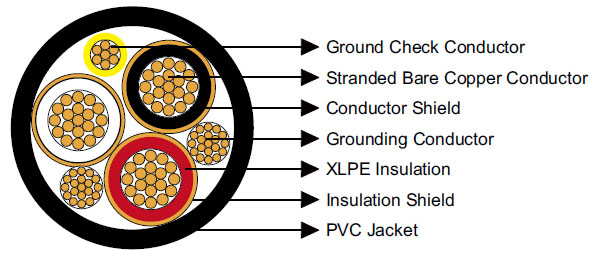

Construction :

  • Conductor Stranded annealed bare copper conductor.
    Conductor Shield Conducting layer.
    Insulation Cross-Linked Polyethylene (XLPE).
    Insulation Shield Conducting layer + copper tape.
    Ground Check Conductor Copper conductor with a yellow polypropylene insulation.
    Grounding Conductor Tinned copper conductor.
    Jacket Polyvinyl Chloride (PVC), black.

Options :

  • Other jacket materials such as CSP/PCP/NBR/CPE/TPU are available upon request.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 12×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands
    Grounding
    Conductor
    Size
    Ground
    Check
    Conductor
    Size
    Nominal Insulation
    Thickness
    Nominal Jacket
    Thickness
    Nominal Overall
    Diameter
    Nominal Weight Ampacity
    No. of cores
    ×AWG/kcmil
    - AWG/
    kcmil
    AWG/
    kcmil
    inch mm inch mm inch mm lbs/kft kg/km A
    3×2 7 6 8 0.175 4.4 0.14 3.6 1.90 48.3 2021 3007 164
    3×1 19 5 8 0.175 4.4 0.14 3.6 1.99 50.6 2503 3724 187
    3×1/0 19 4 8 0.175 4.4 0.14 3.6 2.07 52.6 2658 3955 215
    3×2/0 19 3 8 0.175 4.4 0.14 3.6 2.16 54.9 3066 4562 246
    3×3/0 19 2 8 0.175 4.4 0.14 3.6 2.27 57.7 3710 5530 283
    3×4/0 19 1 8 0.175 4.4 0.14 3.6 2.39 60.7 4369 6500 325
    3×250 37 1/0 8 0.175 4.4 0.14 3.6 2.48 63.0 4875 7253 359
    3×350 37 2/0 8 0.175 4.4 0.14 3.6 2.70 68.6 6412 9540 438
    3×500 37 4/0 8 0.175 4.4 0.17 4.3 3.08 78.2 8610 12810 536
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
