Type MP-GC Three-Conductor Mine Power Feeder Cable, PVC Jacket, 5kV



Applications :

  • These cables are designed for connections between units of mine distribution systems, suitable for direct burial in wet and dry locations.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B-8



    CAN/CSA-C22.2 No.96

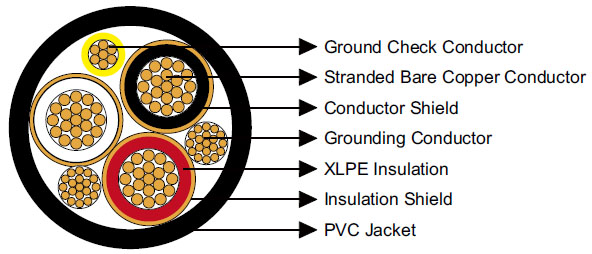

Construction :

  • Conductor Stranded annealed bare copper conductor.
    Conductor Shield Conducting layer.
    Insulation Cross-Linked Polyethylene (XLPE).
    Insulation Shield Conducting layer + copper tape.
    Ground Check Conductor Copper conductor with a yellow polypropylene insulation.
    Grounding Conductor Tinned copper conductor.
    Jacket Polyvinyl Chloride (PVC), black.

Options :

  • Other jacket materials such as CSP/PCP/NBR/CPE/TPU are available upon request.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 12×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands
    Grounding
    Conductor
    Size
    Ground
    Check
    Conductor
    Size
    Nominal Insulation
    Thickness
    Nominal Jacket
    Thickness
    Nominal Overall
    Diameter
    Nominal Weight Ampacity
    No. of cores
    ×AWG/kcmil
    - AWG/
    kcmil
    AWG/
    kcmil
    inch mm inch mm inch mm lbs/kft kg/km A
    3×4 7 8 8 0.09 2.3 0.11 2.8 1.41 35.8 1224 1821 122
    3×2 7 6 8 0.09 2.3 0.11 2.8 1.47 37.3 1653 2459 159
    3×1 19 5 8 0.09 2.3 0.11 2.8 1.54 39.1 1950 2901 184
    3×1/0 19 4 8 0.09 2.3 0.11 2.8 1.63 41.4 2200 3273 211
    3×2/0 19 3 8 0.09 2.3 0.11 2.8 1.72 43.7 2721 4048 243
    3×3/0 19 2 8 0.09 2.3 0.14 3.6 1.89 48.0 3170 4720 279
    3×4/0 19 1 8 0.09 2.3 0.14 3.6 2.01 51.0 3845 5721 321
    3×250 37 1/0 8 0.09 2.3 0.14 3.6 2.10 53.3 4321 6429 355
    3×350 37 2/0 8 0.09 2.3 0.14 3.6 2.31 58.7 5652 8409 435
    3×500 37 4/0 8 0.09 2.3 0.14 3.6 2.59 65.8 7721 11487 536
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
