Type MP-GC Three-Conductor Mine Power Feeder Cable, PVC Jacket, 8kV



Applications :

  • These cables are designed for connections between units of mine distribution systems, suitable for installed in duct, conduit or open air and for direct burial in wet and dry locations.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B-8



    CAN/CSA-C22.2 No.96

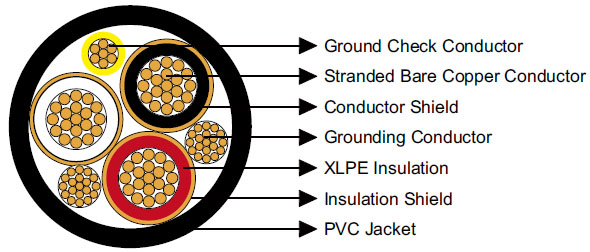

Construction :

  • Conductor Stranded annealed bare copper conductor.
    Conductor Shield Conducting layer.
    Insulation Cross-Linked Polyethylene (XLPE).
    Insulation Shield Conducting layer + copper tape.
    Ground Check Conductor Copper conductor with a yellow polypropylene insulation.
    Grounding Conductor Tinned copper conductor.
    Jacket Polyvinyl Chloride (PVC), black.

Options :

  • Other jacket materials such as CSP/PCP/NBR/CPE/TPU are available upon request.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 12×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands
    Grounding
    Conductor
    Size
    Ground
    Check
    Conductor
    Size
    Nominal Insulation
    Thickness
    Nominal Jacket
    Thickness
    Nominal Overall
    Diameter
    Nominal Weight Ampacity
    No. of cores
    ×AWG/kcmil
    - AWG/
    kcmil
    AWG/
    kcmil
    inch mm inch mm inch mm lbs/kft kg/km A
    3×4 7 8 8 0.115 2.9 0.11 2.8 1.52 38.6 1366 2032 122
    3×2 7 6 8 0.115 2.9 0.11 2.8 1.58 40.1 1727 2569 159
    3×1 19 5 8 0.115 2.9 0.11 2.8 1.66 42.2 2174 3234 184
    3×1/0 19 4 8 0.115 2.9 0.11 2.8 1.74 44.2 2656 3952 211
    3×2/0 19 3 8 0.115 2.9 0.14 3.6 1.90 48.3 2895 4307 243
    3×3/0 19 2 8 0.115 2.9 0.14 3.6 2.00 50.8 3320 4950 279
    3×4/0 19 1 8 0.115 2.9 0.14 3.6 2.12 53.8 3983 5926 321
    3×250 37 1/0 8 0.115 2.9 0.14 3.6 2.22 56.4 4484 6671 355
    3×350 37 2/0 8 0.115 2.9 0.14 3.6 2.43 61.7 5827 8669 435
    3×500 37 4/0 8 0.115 2.9 0.14 3.6 2.70 68.6 7893 11743 536
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
