Type SHD-GC Three-Conductor Round Portable Power Cable, CPE Jacket 25kV



Applications :

  • These heavy duty cables are designed for applications such as longwall shearers, continuous miners and mobile equipment such as shovels, dredges and drills.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B 172



    ASTM B 33



    CAN/CSA C22.2 No. 96

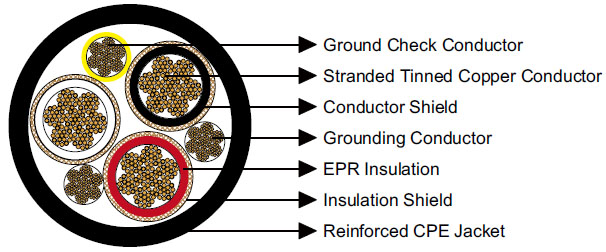

Construction :

  • Conductor Stranded annealed tinned copper conductor.
    Conductor Shield Conducting layer.
    Insulation Ethylene Propylene Rubber (EPR).
    Insulation Shield Conducting tape + Tinned copper/textile braid.
    Ground Check Conductor Tinned copper with a yellow polypropylene insulation.
    Grounding Conductor Tinned copper conductor.
    Jacket Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.

Options :

  • Other jacket materials such as CSP/PCP/NBR/PVC/TPU are available upon request.
  • Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 8×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands    		 Grounding
    Conductor
    Size    		 Ground
    Check
    Conductor
    Size    		 Nominal Insulation
    Thickness    		 Nominal Jacket
    Thickness    		 Nominal Overall
    Diameter    		 Nominal Weight Ampacity
    No. of cores
    ×AWG/kcmil    		 - AWG/
    kcmil    		 AWG/
    kcmil    		 inch mm inch mm inch mm lbs/kft kg/km A
    3×1 259 5 8 0.260 6.6 0.265 6.7 2.95 74.9 5290 7872 191
    3×1/0 259 4 8 0.260 6.6 0.265 6.7 3.05 77.5 5800 8631 218
    3×2/0 329 3 8 0.260 6.6 0.280 7.1 3.20 81.3 6515 9695 249
    3×3/0 413 2 8 0.260 6.6 0.280 7.1 3.33 84.6 7215 10737 286
    3×4/0 532 1 8 0.260 6.6 0.295 7.5 3.50 88.9 8250 12277 327
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
