Type SHD-GC Three-Conductor Round Portable Power Cable, TPU Jacket 15kV



Applications :

  • These heavy duty cables are designed for heavy mobile equipment such as drag lines, shovels, dredges,drills and for power feeders.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B 172



    ASTM B 33



    CAN/CSA C22.2 No. 96

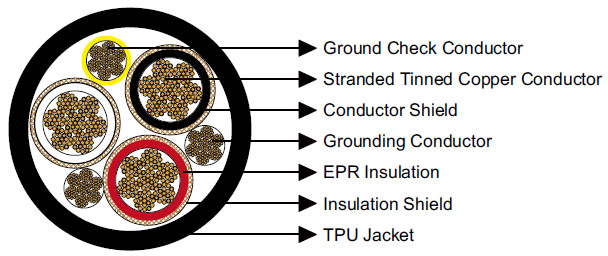

Construction :

  • Conductor Stranded annealed tinned copper conductor.
    Conductor Shield Conducting layer.
    Insulation Ethylene Propylene Rubber (EPR).
    Insulation Shield Conducting tape + Tinned copper/textile braid.
    Ground Check Conductor Tinned copper conductor with a yellow polypropylene insulation.
    Grounding Conductor Tinned copper conductor.
    Jacket Thermoplastic Polyurethane (TPU) Jacket, black.

Options :

  • Other jacket materials such as CPE/CSP/PCP/NBR/PVC are available upon request.
  • Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 8×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands
    Grounding
    Conductor
    Size
    Ground
    Check
    Conductor
    Size
    Nominal Insulation
    Thickness
    Nominal Jacket
    Thickness
    Nominal Overall
    Diameter
    Nominal Weight Ampacity
    No. of cores
    ×AWG/kcmil
    - AWG/
    kcmil
    AWG/
    kcmil
    inch mm inch mm inch mm lbs/kft kg/km A
    3×2 259 6 8 0.210 5.3 0.235 6.0 2.41 61.2 3145 4679 164
    3×1 259 5 8 0.210 5.3 0.235 6.0 2.52 64.0 3567 5307 187
    3×1/0 266 4 8 0.210 5.3 0.250 6.4 2.64 67.0 3976 5916 215
    3×2/0 323 3 8 0.210 5.3 0.250 6.4 2.73 69.3 4526 6734 246
    3×3/0 418 2 8 0.210 5.3 0.265 6.7 2.90 73.7 5231 7783 283
    3×4/0 532 1 8 0.210 5.3 0.265 6.7 3.05 77.5 6033 8976 325
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
