Type G Three-Conductor Round Portable Power Cable 2kV



Applications :

  • These cables are designed for use with mobile mining equipment, such as continuous miners, cutting or loading machines, conveyors, drills or pumps.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B 172



    ASTM B 33



    CAN/CSA C22.2 No. 96

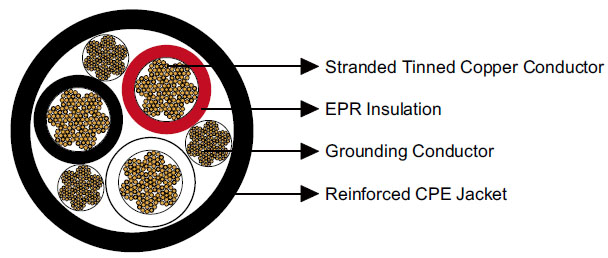

Construction :

  • Conductor Stranded annealed tinned copper conductor.
    Insulation Ethylene Propylene Rubber (EPR).
    Grounding Conductor Tinned copper conductor with an optional green outer covering.
    Jacket Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

Options :

  • Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
  • Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 6×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands    		 Grounding
    Conductor
    Size    		 Nominal Insulation
    Thickness    		 Nominal Jacket
    Thickness    		 Nominal Overall
    Diameter    		 Nominal Weight Ampacity
    No. of cores
    ×AWG/kcmil    		 - AWG/
    kcmil    		 inch mm inch mm inch mm lbs/kft kg/km A
    3×8 133 10 0.06 1.5 0.125 3.2 0.91 23.1 590 878 59
    3×6 168 10 0.06 1.5 0.140 3.6 1.01 25.7 760 1131 79
    3×4 259 8 0.06 1.5 0.155 3.9 1.17 29.7 1070 1592 104
    3×3 329 8 0.06 1.5 0.155 3.9 1.24 31.5 1280 1904 120
    3×2 259 8 0.06 1.5 0.155 3.9 1.34 34.0 1530 2276 138
    3×1 329 7 0.08 2.0 0.170 4.3 1.51 38.4 1890 2812 161
    3×1/0 259 6 0.08 2.0 0.170 4.3 1.65 41.9 2320 3452 186
    3×2/0 329 5 0.08 2.0 0.190 4.8 1.75 44.5 2700 4017 215
    3×3/0 413 4 0.08 2.0 0.190 4.8 1.89 48.0 3270 4865 249
    3×4/0 532 3 0.08 2.0 0.205 5.2 2.04 51.8 3970 5907 287
    3×250 608 2 0.095 2.4 0.220 5.6 2.39 60.7 5080 7558 320
    3×300 741 1 0.095 2.4 0.235 6.0 2.56 65.0 6080 9046 357
    3×350 855 1 0.095 2.4 0.235 6.0 2.68 68.1 7140 10623 394
    3×400 988 1/0 0.095 2.4 0.250 6.4 2.82 71.6 7780 11575 430
    3×500 1221 2/0 0.095 2.4 0.250 6.4 3.03 77.0 9065 13487 487
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
