Type G Two-Conductor Flat Portable Power Cable 2kV



Applications :

  • These flat parallel cables are designed for use on D.C. off-track mining equipment, such as D.C. shuttle cars,drills, cutting and loading machines.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B 172



    ASTM B 33



    CAN/CSA C22.2 No. 96

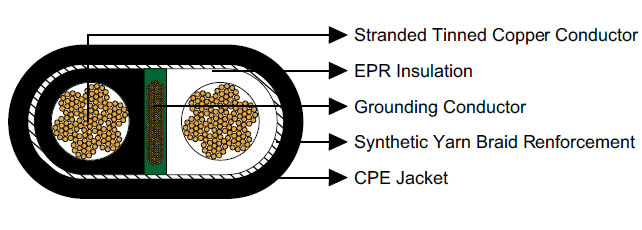

Construction :

  • Conductor Stranded annealed tinned copper conductor.
    Insulation Ethylene Propylene Rubber (EPR).
    Grounding Conductor Tinned copper conductor with an optional green outer covering.
    Reinforcement Synthetic yarn.
    Jacket Heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

Options :

  • Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
  • Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 6×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands
    Grounding
    Conductor
    Size
    Nominal Insulation
    Thickness
    Nominal Jacket
    Thickness
    Nominal Overall
    Diameter
    Height×Width
    Nominal Weight Ampacity
    No. of cores
    ×AWG/kcmil
    - AWG/
    kcmil
    inch mm inch mm inch mm lbs/kft kg/km A
    2×6 133 8 0.06 1.5 0.080 2.0 0.56×1.02 14.2×25.9 500 744 95
    2×4 259 7 0.06 1.5 0.095 2.4 0.61×1.15 15.5×29.2 635 945 127
    2×3 259 6 0.06 1.5 0.095 2.4 0.68×1.26 17.3×32.0 785 1170 145
    2×2 259 5 0.06 1.5 0.095 2.4 0.73×1.35 18.5×34.3 935 1390 167
    2×1 259 4 0.08 2.0 0.110 2.8 0.81×1.55 20.6×39.4 1185 1760 191
    2×1/0 259 3 0.08 2.0 0.125 3.2 0.93×1.67 23.6×42.4 1470 2190 217
    2×2/0 329 2 0.08 2.0 0.125 3.2 0.99×1.85 25.1×47.0 1790 2660 250
    2×3/0 413 1 0.08 2.0 0.140 3.6 1.03×2.00 26.2×50.8 2145 3190 286
    2×4/0 532 1/0 0.08 2.0 0.140 3.6 1.10×2.10 27.9×53.3 2545 3790 328
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
