Type G Two-Conductor Round Portable Power Cable 2kV



Applications :

  • These cables are designed for use in heavy duty services as power supply cable, mobile and portable electrical.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B 172



    ASTM B 33



    CAN/CSA C22.2 No. 96

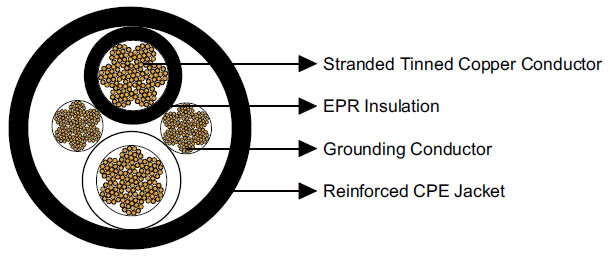

Construction :

  • Conductor Stranded annealed tinned copper conductor.
    Insulation Ethylene Propylene Rubber (EPR).
    Grounding Conductor Tinned copper conductor with an optional green outer covering.
    Jacket Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

Options :

  • Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
  • Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 6×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands
    Grounding
    Conductor
    Size
    Nominal Insulation
    Thickness
    Nominal Jacket
    Thickness
    Nominal Overall
    Diameter
    Nominal Weight Ampacity
    No. of cores
    ×AWG/kcmil
    - AWG/
    kcmil
    inch mm inch mm inch mm lbs/kft kg/km A
    2×8 133 10 0.06 1.5 0.110 2.8 0.81 20.6 495 736 72
    2×6 259 10 0.06 1.5 0.125 3.2 0.93 23.6 650 967 95
    2×4 259 8 0.06 1.5 0.140 3.6 1.08 27.4 940 1399 127
    2×2 259 6 0.06 1.5 0.155 3.9 1.27 32.3 1360 2023 167
    2×1 259 5 0.08 2.0 0.170 4.3 1.44 36.6 1730 2574 191
    2×1/0 259 4 0.08 2.0 0.170 4.3 1.52 38.6 2000 2976 217
    2×2/0 259 3 0.08 2.0 0.170 4.3 1.65 41.9 2240 3333 250
    2×3/0 259 2 0.08 2.0 0.190 4.8 1.77 45.0 2860 4255 286
    2×4/0 259 1 0.08 2.0 0.190 4.8 1.92 48.8 3500 5207 328
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
