Applications :

• These heavy duty cables are designed for applications such as longwall shearers, continuous miners, loaders,drills, conveyors, pumps, and other mobile equipment requiring grounding conductors, where a ground check conductor, and metallic shielding are required.

Standards :

• ICEA S-75-381/NEMA WC 58   ASTM B 172   ASTM B 33   CAN/CSA C22.2 No. 96

Construction :

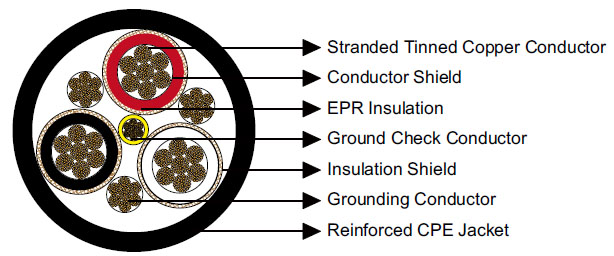

• Conductor	Stranded annealed tinned copper conductor.
  Conductor Shield	Conducting layer.
  Insulation	Ethylene Propylene Rubber (EPR).
  Insulation Shield	Tinned copper/textile braid.
  Ground Check Conductor	Tinned copper with a yellow insulation, located in the center of the cable.
  Grounding Conductor	Tinned copper conductor.
  Jacket	Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.

Options :

• Other jacket materials such as CSP/PCP/NBR/PVC/TPU are available upon request.
• Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties :

• Minimum Bending Radius: 6×OD.
• Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

• Construction	No. of Strands	Grounding Conductor Size	Ground Check Conductor Size	Nominal Insulation Thickness		Nominal Jacket Thickness		Nominal Overall Diameter		Nominal Weight		Ampacity
  No. of cores ×AWG/kcmil	-	AWG/ kcmil	AWG/ kcmil	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
  3×2/0	323	5	16	0.11	2.8	0.220	5.6	2.20	55.9	3716	5529	243
  3×3/0	418	4	16	0.11	2.8	0.235	6.0	2.36	59.9	4130	6145	279
  3×4/0	532	3	16	0.11	2.8	0.235	6.0	2.50	63.5	5190	7722	321
  3×350	888	1	16	0.12	3.0	0.265	6.7	2.95	74.9	7571	11264	435

• Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
