Type SHD-PCG Three-Conductor Round Portable Power Cable 2kV



Applications :

  • These heavy duty cables are designed for use on longwall shearers, where three shielded power conductors,three unshielded control conductors, and a grounding conductor are required.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B 172



    ASTM B 33



    CAN/CSA C22.2 No. 96

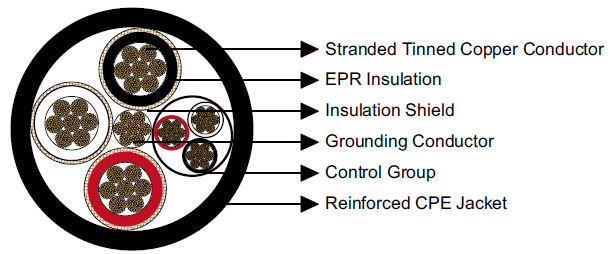

Construction :

  • Conductor Stranded annealed tinned copper conductor.
    Insulation Ethylene Propylene Rubber (EPR).
    Insulation Shield Tinned copper/textile braid.
    Grounding Conductor Tinned copper conductor with an optional green outer covering.
    Control Group (3 Conductor) Tinned copper conductor, EPR insulation and thermosetting jacket. Colour of insulation: Black, white and red.
    Grounding Conductor Tinned copper conductor, located in the center of the cable.
    Jacket Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.

Options :

  • Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
  • Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 6×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands
    Grounding
    Conductor
    Size
    Control
    Conductor
    Size
    Nominal Insulation
    Thickness
    Nominal Jacket
    Thickness
    Nominal Overall
    Diameter
    Nominal Weight Ampacity
    No. of cores
    ×AWG/kcmil
    - AWG/
    kcmil
    AWG/
    kcmil
    inch mm inch mm inch mm lbs/kft kg/km A
    3×1/0 259 3 8 0.08 2.0 0.205 5.2 2.05 52.1 3092 4602 211
    3×2/0 329 2 8 0.08 2.0 0.220 5.6 2.25 57.1 3698 5503 243
    3×3/0 413 1 8 0.08 2.0 0.220 5.6 2.32 58.9 4295 6392 279
    3×4/0 532 1/0 8 0.08 2.0 0.250 6.3 2.62 66.5 5115 7612 321
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
