Type SHD Three-Conductor Flat Portable Power Cable 2kV



Applications :

  • These flat parallel cables are designed for use on continuous miners requiring grounding conductors and metallic shielding over each conductor.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B 172



    ASTM B 33



    CAN/CSA C22.2 No. 96

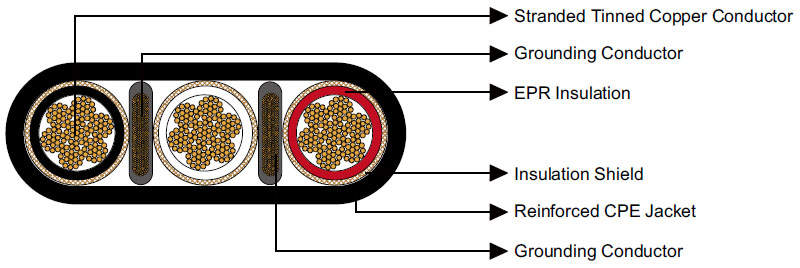

Construction :

  • Conductor Stranded annealed tinned copper conductor.
    Insulation Ethylene Propylene Rubber (EPR).
    Insulation Shield Tinned copper/textile braid.
    Grounding Conductor Tinned copper conductor covered with a conducting extrusion layer.
    Jacket Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.

Options :

  • Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
  • Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 6×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands
    Grounding
    Conductor
    Size
    Nominal Insulation
    Thickness
    Nominal Jacket
    Thickness
    Nominal Overall
    Diameter
    Height×Width
    Nominal Weight Ampacity
    No. of cores
    ×AWG/kcmil
    - AWG/
    kcmil
    inch mm inch mm inch mm lbs/kft kg/km A
    3×2 259 6 0.07 1.8 0.125 3.2 0.94×2.45 23.9×62.2 2243 3338 159
    3×1 259 5 0.08 2.0 0.140 3.6 1.04×2.64 26.4×67.1 2540 3780 184
    3×1/0 259 4 0.08 2.0 0.140 3.6 1.08×2.82 27.4×71.6 2915 4338 211
    3×2/0 329 3 0.08 2.0 0.155 3.9 1.18×2.99 30.0×76.0 3346 4980 243
    3×3/0 413 2 0.08 2.0 0.155 3.9 1.25×3.29 31.8×83.6 3890 5789 279
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
