Type W Two-Conductor Round Portable Power Cable 2kV



Applications :

  • These cables are designed for general use where bare grounding conductors are not required or desired.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B 172



    ASTM B 33



    CAN/CSA C22.2 No. 96

Construction :

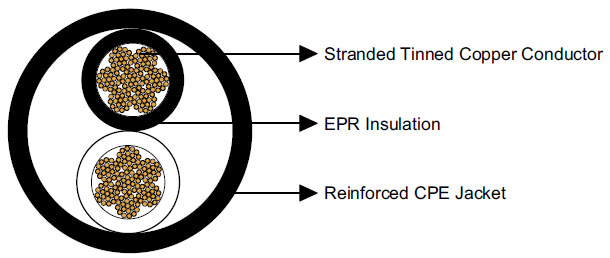

  • Conductor Stranded annealed tinned copper conductor.
    Insulation Ethylene Propylene Rubber (EPR).
    Jacket Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

Options :

  • Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
  • Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 6×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands    		 Nominal Insulation
    Thickness    		 Nominal Jacket
    Thickness    		 Nominal Overall
    Diameter    		 Nominal Weight Ampacity
    No. of
    cores×AWG/kcmil    		 - inch mm inch mm inch mm lbs/kft kg/km A
    2×8 166 0.06 1.5 0.110 2.8 0.83 21.1 391 581 72
    2×6 259 0.06 1.5 0.125 3.2 0.94 23.9 571 849 95
    2×4 412 0.06 1.5 0.140 3.6 1.07 27.3 793 1180 127
    2×2 259 0.06 1.5 0.155 3.9 1.26 32.1 1142 1699 167
    2×1/0 414 0.08 2.0 0.170 4.3 1.51 38.3 1693 2520 217
    2×2/0 522 0.08 2.0 0.170 4.3 1.65 41.9 1908 2840 250
    2×3/0 658 0.08 2.0 0.190 4.8 1.77 45.0 2600 3870 286
    2×4/0 829 0.08 2.0 0.190 4.8 1.92 48.8 2675 3980 328
    2×250 973 0.095 2.4 0.205 5.2 2.10 53.3 3434 5110 363
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
