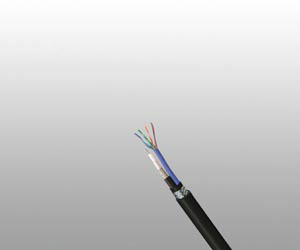

Mud Resistant Composite Cable



Applications :

  • These composite cables consist of cat6 data cable & coaxial cable & power cable, with copper wire braid armoured & flame retardant oil&mud resistant outer sheath.

Standards :

  • IEC 60092-359 IEC 60332-3-22
    IEC 60754-1,2 IEC 61034-1,2
    NEK 606:2004




Construction :

  • 1) 4×2×0.57mm U/UTP Cat6 Data Cable:
  •   Conductors : Solid bare copper wire.
      Insulation : PE.
      Twinning : Two coloured insulated wire twisted to form a pair.
      Sheath : Flame retardant LSZH, coloured grey.
  • 2) RG59 Coaxial Cable:
  •   Conductors : 0.58mm solid bare copper wire.
      Insulation : PE.
      Shielding : Bare copper wire braid.
      Sheath : Flame retardant LSZH, coloured grey.
  • 3) 3×1.0mm² Power Cable :
  •   Conductors : 7/0.44mm stranded bare copper wire.
      Insulation : XLPE. Coloured Blue, Brown, Green/Yellow.
      Sheath : Flame retardant LSZH, coloured grey

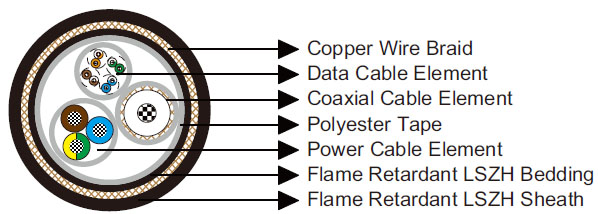

  • 4) Element Assembly :
  •   Bedding : Flame retardant LSZH.
      Armour : Tinned copper wire braid.
      Outer Sheath : Oil & mud resistant, flame retardant LSZH, coloured grey.
      Filler : PP, PVC, PE or LSZH Material.
      Wrapping : Polyester Tape.

Dimensions :



Cable Construction Nominal Data Cable Diameter mm Nominal Coaxial Cable Diameter Nominal Power Cable Diameter Nominal Overall Diameter
    mm mm mm
4×2×0.57mm + RG59 + 3×1.0mm² 6.0 6.2 6.8 21.0

  Note: Other construction can be offered opon request.
