P1 or P1/P8 RFOU/TFOU 0.6/1KV
Applications :
- These cables are flame retardant, low smoke, halogen freeand mud resistant, used for control, power and lighting systems.
Standards :
-
IEC 60092-353 IEC 60092-351 IEC 60092-359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1,2 IEC 61034-1,2 NEK 606:2004

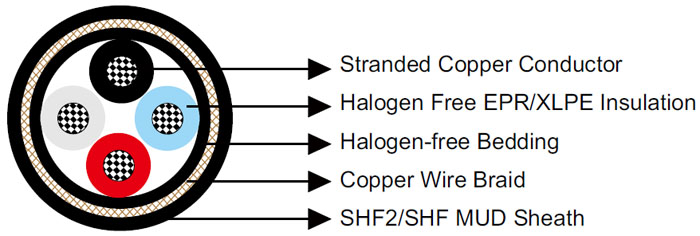

Construction :
- Conductors : Tinned annealed stranded copper to IEC 60228 class 2.
- Bedding : Halogen free compound.
- Armour : Tinned copper wire braid.
- Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE P1). Halogen free, mud resistant thermosetting compound, SHF MUD (for TYPE P1/P8), coloured black.
Electrical Characteristics :
-
Nominal Cross Section Area mm² 1.5 2.5 4 6 10 16 25 35 50 70 Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 4.0 5.1 6.5 7.4 8.7 10.3 Maximum DC Resistant@20℃ Ω/km 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529 0.391 0.27 Continuous Current Rating@45℃1 Core A 23 30 40 52 72 96 127 157 196 242 Continuous Current Rating@45℃2 Core A 20 26 34 44 61 82 108 133 167 206 Continuous Current Rating@45℃ 3&4 Core A 16 21 28 36 50 67 89 110 137 169 Short Circuit Current 1s A 210 360 570 860 1430 2290 3580 5010 7150 10020 Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 -
Nominal Cross Section Area mm² 95 120 150 185 240 300 400 500 630 Nominal Conductor Diameter mm 12.2 13.8 15.1 17.0 19.6 21.9 24.6 27.6 32.5 Maximum DC Resistant@20℃ Ω/km 0.195 0.154 0.126 0.1 0.0762 0.0607 0.0475 0.0369 0.0286 Continuous Current Rating@45℃1 Core A 293 339 389 444 522 601 690 780 890 Continuous Current Rating@45℃2 Core A 249 288 331 444 444 511 587 663 757 Continuous Current Rating@45℃3&4 Core A 205 237 272 311 365 421 483 546 623 Short Circuit Current 1s A 13590 17170 21460 26470 34340 42930 57230 71540 90140 Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 - Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.
Ambient Temperature Correction Factors :
-
Ambient Temperature Correction Factors
35 40 45 50 55 60 65 70 75 80 Rating Factor1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight :
Construction No. of cores×Cross section (mm²) |
Nominal Insulation Thickness mm | Nominal Diameter Over Bedding mm |
Nominal Overall Diameter mm | Nominal Weight kg/km |
|
---|---|---|---|---|---|
Inner | Outer | ||||
1×1.5 | 1.0 | 1.1 | 1.1 | 8.9 | 135 |
1×2.5 | 1.0 | 1.1 | 1.1 | 9.3 | 150 |
1×4 | 1.0 | 1.1 | 1.1 | 9.9 | 180 |
1×6 | 1.0 | 1.1 | 1.1 | 10.4 | 205 |
1×10 | 1.0 | 1.1 | 1.2 | 12.2 | 295 |
1×16 | 1.0 | 1.1 | 1.2 | 13.5 | 385 |
1×25 | 1.2 | 1.1 | 1.2 | 15.4 | 525 |
1×35 | 1.2 | 1.1 | 1.3 | 16.9 | 685 |
1×50 | 1.4 | 1.1 | 1.4 | 18.7 | 870 |
1×70 | 1.4 | 1.1 | 1.4 | 20.4 | 1105 |
1×95 | 1.6 | 1.1 | 1.5 | 22.8 | 1435 |
1×120 | 1.6 | 1.2 | 1.6 | 24.9 | 1745 |
1×150 | 1.8 | 1.2 | 1.6 | 26.8 | 2055 |
1×185 | 2.0 | 1.2 | 1.7 | 29.3 | 2560 |
1×240 | 2.2 | 1.2 | 1.8 | 32.5 | 3190 |
1×300 | 2.4 | 1.2 | 1.9 | 35.2 | 3935 |
1×400 | 2.4 | 1.4 | 2.1 | 40.5 | 5060 |
1×500 | 2.4 | 1.4 | 2.2 | 44.0 | 6180 |
1×630 | 2.4 | 1.4 | 2.3 | 48.0 | 7620 |
2×1.5 | 1.0 | 1.1 | 1.2 | 13.6 | 295 |
2×2.5 | 1.0 | 1.1 | 1.2 | 14.4 | 335 |
2×4 | 1.0 | 1.1 | 1.3 | 16.1 | 445 |
2×6 | 1.0 | 1.1 | 1.3 | 17.1 | 520 |
2×10 | 1.0 | 1.1 | 1.4 | 19.3 | 680 |
2×16 | 1.0 | 1.1 | 1.5 | 21.7 | 955 |
2×25 | 1.2 | 1.2 | 1.6 | 25.9 | 1335 |
2×35 | 1.2 | 1.2 | 1.7 | 27.9 | 1595 |
2×50 | 1.4 | 1.2 | 1.9 | 31.9 | 2250 |
2×70 | 1.4 | 1.2 | 2.1 | 35.8 | 2795 |
2×95 | 1.6 | 1.2 | 2.3 | 41.2 | 3780 |
2×120 | 1.6 | 1.4 | 2.4 | 44.8 | 4560 |
2×150 | 1.8 | 1.4 | 2.6 | 49.2 | 5500 |
2×185 | 2.0 | 1.4 | 2.7 | 53.8 | 6675 |
2×240 | 2.2 | 1.6 | 3.0 | 61.0 | 8605 |
2×300 | 2.4 | 1.6 | 3.2 | 67.0 | 10510 |
3×1.5 | 1.0 | 1.1 | 1.2 | 14.2 | 320 |
3×2.5 | 1.0 | 1.1 | 1.3 | 15.6 | 415 |
3×4 | 1.0 | 1.1 | 1.3 | 16.8 | 500 |
3×6 | 1.0 | 1.1 | 1.4 | 18.1 | 605 |
3×10 | 1.0 | 1.1 | 1.4 | 20.3 | 795 |
3×16 | 1.0 | 1.1 | 1.5 | 22.8 | 1125 |
3×25 | 1.2 | 1.2 | 1.6 | 27.5 | 1620 |
3×35 | 1.2 | 1.2 | 1.7 | 29.6 | 1955 |
3×50 | 1.4 | 1.2 | 1.9 | 33.9 | 2730 |
3×70 | 1.4 | 1.4 | 2.0 | 38.4 | 3655 |
3×95 | 1.6 | 1.4 | 2.2 | 43.8 | 4885 |
3×120 | 1.6 | 1.4 | 2.3 | 47.6 | 6000 |
3×150 | 1.8 | 1.6 | 2.5 | 52.4 | 7300 |
3×185 | 2.0 | 1.6 | 2.7 | 58.6 | 8960 |
3×240 | 2.2 | 1.8 | 2.9 | 66.1 | 11610 |
3×300 | 2.2 | 1.8 | 3.4 | 71.9 | 13490 |
4×1.5 | 1.0 | 1.1 | 1.3 | 15.7 | 350 |
4×2.5 | 1.0 | 1.1 | 1.3 | 16.6 | 425 |
4×4 | 1.0 | 1.1 | 1.4 | 18.1 | 590 |
4×6 | 1.0 | 1.1 | 1.4 | 19.5 | 725 |
4×10 | 1.0 | 1.1 | 1.5 | 22.1 | 955 |
4×16 | 1.0 | 1.2 | 1.6 | 25.2 | 1375 |
4×25 | 1.2 | 1.2 | 1.7 | 30.0 | 1965 |
4×35 | 1.2 | 1.2 | 1.8 | 32.4 | 2410 |
4×50 | 1.4 | 1.4 | 2.0 | 37.3 | 3365 |
4×70 | 1.4 | 1.4 | 2.2 | 42.1 | 4580 |
4×95 | 1.6 | 1.4 | 2.4 | 48.2 | 6020 |
4×120 | 1.6 | 1.6 | 2.5 | 52.7 | 7440 |
4×150 | 1.8 | 1.6 | 2.9 | 58.3 | 8800 |
4×185 | 2.0 | 1.6 | 3.1 | 64.0 | 10760 |
4×240 | 2.2 | 1.8 | 3.4 | 72.4 | 13890 |
4×300 | 2.4 | 1.8 | 3.7 | 79.8 | 17405 |
5×1.5 | 1.0 | 1.1 | 1.3 | 16.7 | 420 |
6×1.5 | 1.0 | 1.1 | 1.3 | 17.8 | 495 |
7×1.5 | 1.0 | 1.1 | 1.3 | 17.8 | 540 |
8×1.5 | 1.0 | 1.1 | 1.5 | 20.3 | 645 |
9×1.5 | 1.0 | 1.1 | 1.5 | 21.5 | 675 |
10×1.5 | 1.0 | 1.1 | 1.5 | 21.8 | 705 |
12×1.5 | 1.0 | 1.1 | 1.5 | 22.5 | 805 |
14×1.5 | 1.0 | 1.1 | 1.6 | 23.6 | 860 |
16×1.5 | 1.0 | 1.1 | 1.7 | 24.9 | 940 |
19×1.5 | 1.0 | 1.1 | 1.7 | 26.0 | 1100 |
20×1.5 | 1.0 | 1.1 | 1.7 | 27.2 | 1130 |
23×1.5 | 1.0 | 1.1 | 1.8 | 29.3 | 1285 |
24×1.5 | 1.0 | 1.1 | 1.8 | 30.0 | 1305 |
27×1.5 | 1.0 | 1.1 | 1.9 | 30.8 | 1460 |
30×1.5 | 1.0 | 1.1 | 1.9 | 31.8 | 1520 |
33×1.5 | 1.0 | 1.2 | 2.0 | 33.5 | 1670 |
37×1.5 | 1.0 | 1.2 | 2.0 | 34.6 | 1840 |
44×1.5 | 1.0 | 1.2 | 2.2 | 39.2 | 2210 |
5×2.5 | 1.0 | 1.1 | 1.4 | 18.0 | 555 |
6×2.5 | 1.0 | 1.1 | 1.4 | 19.2 | 590 |
7×2.5 | 1.0 | 1.1 | 1.4 | 19.2 | 655 |
8×2.5 | 1.0 | 1.1 | 1.5 | 21.8 | 775 |
9×2.5 | 1.0 | 1.1 | 1.6 | 23.3 | 785 |
10×2.5 | 1.0 | 1.1 | 1.6 | 23.6 | 865 |
12×2.5 | 1.0 | 1.1 | 1.6 | 24.5 | 955 |
14×2.5 | 1.0 | 1.1 | 1.7 | 25.5 | 1070 |
16×2.5 | 1.0 | 1.1 | 1.7 | 26.7 | 1155 |
19×2.5 | 1.0 | 1.1 | 1.8 | 28.2 | 1360 |
20×2.5 | 1.0 | 1.1 | 1.8 | 29.5 | 1410 |
23×2.5 | 1.0 | 1.1 | 1.9 | 31.8 | 1610 |
24×2.5 | 1.0 | 1.2 | 2.0 | 33.2 | 1690 |
27×2.5 | 1.0 | 1.2 | 2.0 | 33.9 | 1815 |
30×2.5 | 1.0 | 1.2 | 2.0 | 34.9 | 1960 |
33×2.5 | 1.0 | 1.2 | 2.1 | 36.7 | 2190 |
37×2.5 | 1.0 | 1.2 | 2.1 | 38.0 | 2370 |
44×2.5 | 1.0 | 1.2 | 2.3 | 42.6 | 2795 |
