P15 UX 0.6/1kV
![](../../images/line.jpg)
Applications :
- These cables are flame retardant, low smoke and halogen free, used for earthing and bonding services.
Standards :
-
IEC 60092-353 IEC 60092-359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1,2 IEC 61034-1,2 NEK 606:2004
![]() |
![]() |
Construction :

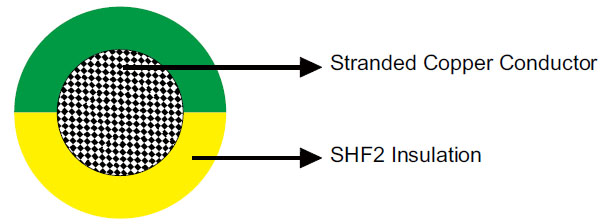

- Conductors : Tinned annealed stranded copper to IEC 60228 class 2 or class 5.
- Insulation : Halogen free thermosetting compound, SHF2. When used as protective earth (PE) wire, the cables coloured yellow/green. When used as single wire, the cables coloured off-white, black, red or blue.
Electrical Characteristics :
-
Nominal Cross Section Area mm² 10 16 25 35 50 70 Nominal Conductor Diameter mm 4 5.1 6.5 7.4 8.7 10.3 Maximum DC Resistant@20℃ Ω/km 1.84 1.16 0.734 0.529 0.391 0.27 Continuous Current Rating@45℃1 Core A 72 96 127 157 196 242 Short Circuit Current 1s A 1430 2290 3580 5010 7150 10020 Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 -
Nominal Cross Section Area mm² 95 120 150 185 240 300 Nominal Conductor Diameter mm 12.2 13.8 15.1 17.0 19.6 21.9 Maximum DC Resistant@20℃ Ω/km 0.195 0.154 0.126 0.1 0.0762 0.0607 Continuous Current Rating@45℃1 Core A 293 339 389 444 522 601 Short Circuit Current 1s A 13590 17170 21460 26470 34340 42930 Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight :
Construction No. of cores×Cross section (mm²) | Nominal Insulation Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
1×10 | 1.0 | 6.6 | 125 |
1×16 | 1.0 | 7.7 | 185 |
1×25 | 1.2 | 9.5 | 290 |
1×35 | 1.2 | 10.4 | 380 |
1×50 | 1.4 | 12.1 | 510 |
1×70 | 1.4 | 13.6 | 700 |
1×95 | 1.6 | 15.5 | 950 |
1×120 | 1.6 | 17.5 | 1205 |
1×150 | 1.8 | 19.4 | 1470 |
1×185 | 2.0 | 21.7 | 1875 |
1×240 | 2.2 | 24.7 | 2420 |
1×300 | 2.4 | 27.2 | 3060 |
