P16 IFLI 250 V



Applications :

  • These cables are flame retardant, low smoke and halogen free, used for living, quarter and office areas.

Standards :

  • IEC 60092-376 IEC 60092-351
    IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004

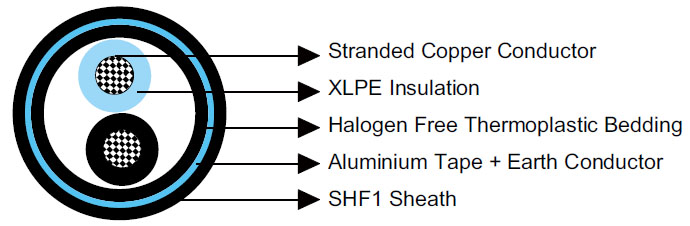

Construction :

  • Conductors : Circular stranded copper wire to IEC 60228 class 2.
  • Insulation : XLPE.
  • Bedding : Halogen free thermoplastic compound.
  • Metal Screen : Longitudinal aluminium tape, thickness 0.2 mm in contact with a stranded copper earth conductor.
  • Outer Sheath : Halogen free thermoplastic compound, SHF1, coloured grey.

Electrical Characteristics :

  • Nominal Cross Section Area mm² 2.5
    Maximum Resistant@20℃ Ω/km 7.41
    Continuous Current Rating@45℃2 Core A 26
    Short Circuit Current 1s A 360
    Operating Voltage V 250

Mechanical and Thermal Properties :

  • Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
  • Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight :



Construction No. of elements×No. of cores in element×Cross section
(mm²)
Nominal Insulation Thickness
mm
Nominal Sheath Thickness
mm
Nominal Overall Diameter
mm
Nominal Weight
kg/km
Inner Outer
2×1×2.5 0.7 1.1 1.2 10.0 180
