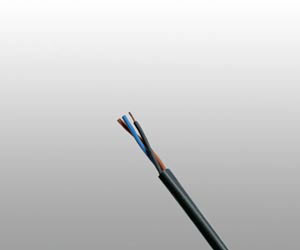

P17 BU 0.6/1 kV
![](../../images/line.jpg)
Applications :
- These cables are fire resistant, flame retardant, low smoke and halogen free, used for control, power and lighting systems.
Standards :
-
IEC 60092-353 IEC 60092-351 IEC 60092-359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1,2 IEC 61034-1,2 NEK 606:2004
![]() |
![]() |

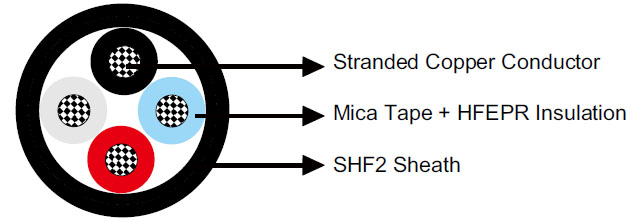

Construction :
- Conductors : Tinned annealed stranded copper to IEC 60228 class 2.
- Insulation : Mica tape + Halogen free EPR.
- Outer Sheath : Halogen free thermosetting compound, SHF2, coloured black.
Electrical Characteristics :
-
Nominal Cross Section Area mm² 1.5 2.5 4 6 10 16 25 35 Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 4 5.1 6.5 7.4 Maximum DC Resistant@20℃ Ω/km 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529 Continuous Current Rating@45℃1 Core A 23 30 40 52 72 96 127 157 Continuous Current Rating@45℃2 Core A 20 26 34 44 61 82 108 133 Continuous Current Rating@45℃3&4 Core A 16 21 28 36 50 67 89 110 Short Circuit Current 1s A 210 360 570 860 1430 2290 3580 5010 Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 -
Nominal Cross Section Area mm² 50 70 95 120 150 185 240 300 Nominal Conductor Diameter mm 8.7 10.3 12.2 13.8 15.1 17.0 19.6 21.9 Maximum DC Resistant@20℃ Ω/km 0.391 0.27 0.195 0.154 0.126 0.1 0.0762 0.0607 Continuous Current Rating@45℃1 Core A 196 242 293 339 389 444 522 601 Continuous Current Rating@45℃2 Core A 167 206 249 288 331 444 444 511 Continuous Current Rating@45℃3&4 Core A 137 169 205 237 272 311 365 421 Short Circuit Current 1s A 7150 10020 13590 17170 21460 26470 34340 42930 Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 - Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.
Ambient Temperature Correction Factors :
-
Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80 Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight :
Construction No. of cores×Cross section (mm²) | Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
1×1.5 | 1.0 | 1.0 | 6.4 | 65 |
1×2.5 | 1.0 | 1.0 | 6.8 | 75 |
1×4 | 1.0 | 1.0 | 7.4 | 95 |
1×6 | 1.0 | 1.0 | 7.9 | 120 |
1×10 | 1.0 | 1.1 | 8.8 | 170 |
1×16 | 1.0 | 1.1 | 10.2 | 240 |
1×25 | 1.2 | 1.2 | 12.0 | 360 |
1×35 | 1.2 | 1.2 | 13.1 | 455 |
1×50 | 1.4 | 1.3 | 14.7 | 600 |
1×70 | 1.4 | 1.4 | 16.6 | 805 |
1×95 | 1.6 | 1.5 | 19.0 | 1095 |
1×120 | 1.6 | 1.5 | 20.6 | 1345 |
1×150 | 1.8 | 1.6 | 22.7 | 1635 |
1×185 | 2.0 | 1.7 | 25.2 | 2070 |
1×240 | 2.2 | 1.8 | 28.4 | 2655 |
1×300 | 2.4 | 1.9 | 31.1 | 3335 |
2×1.5 | 1.0 | 1.1 | 10.3 | 155 |
2×2.5 | 1.0 | 1.2 | 11.0 | 190 |
2×4 | 1.0 | 1.2 | 12.3 | 250 |
2×6 | 1.0 | 1.3 | 13.4 | 310 |
2×10 | 1.0 | 1.3 | 15.6 | 445 |
2×16 | 1.0 | 1.4 | 18.2 | 635 |
2×25 | 1.2 | 1.6 | 22.0 | 970 |
2×35 | 1.2 | 1.7 | 24.0 | 1215 |
2×50 | 1.4 | 1.8 | 27.4 | 1615 |
2×70 | 1.4 | 1.9 | 32.6 | 2335 |
2×95 | 1.6 | 2.1 | 37.6 | 3155 |
2×120 | 1.6 | 2.3 | 41.2 | 3875 |
2×150 | 1.8 | 2.4 | 45.4 | 4725 |
2×185 | 2.0 | 2.6 | 50.2 | 5845 |
2×240 | 2.2 | 2.8 | 56.8 | 7570 |
2×300 | 2.4 | 3.1 | 63.0 | 9395 |
3×1.5 | 1.0 | 1.2 | 10.9 | 180 |
3×2.5 | 1.0 | 1.2 | 11.9 | 230 |
3×4 | 1.0 | 1.2 | 13.1 | 295 |
3×6 | 1.0 | 1.3 | 14.2 | 375 |
3×10 | 1.0 | 1.4 | 16.5 | 550 |
3×16 | 1.0 | 1.5 | 19.3 | 795 |
3×25 | 1.2 | 1.6 | 23.5 | 1220 |
3×35 | 1.2 | 1.7 | 25.6 | 1545 |
3×50 | 1.4 | 1.9 | 29.5 | 2075 |
3×70 | 1.4 | 2.0 | 33.2 | 2775 |
3×95 | 1.6 | 2.2 | 38.5 | 3800 |
3×120 | 1.6 | 2.4 | 42.0 | 4685 |
3×150 | 1.8 | 2.5 | 46.3 | 5685 |
3×185 | 2.0 | 2.7 | 51.8 | 7215 |
3×240 | 2.2 | 3.0 | 58.0 | 9320 |
3×300 | 2.4 | 3.2 | 67.6 | 12280 |
4×1.5 | 1.0 | 1.2 | 12.1 | 225 |
4×2.5 | 1.0 | 1.2 | 13.0 | 275 |
4×4 | 1.0 | 1.3 | 14.5 | 365 |
4×6 | 1.0 | 1.4 | 15.8 | 490 |
4×10 | 1.0 | 1.4 | 18.4 | 695 |
4×16 | 1.0 | 1.5 | 21.5 | 1005 |
4×25 | 1.2 | 1.7 | 26.1 | 1550 |
4×35 | 1.2 | 1.8 | 28.5 | 1970 |
4×50 | 1.4 | 2.0 | 32.8 | 2645 |
4×70 | 1.4 | 2.2 | 36.9 | 3545 |
4×95 | 1.6 | 2.4 | 42.8 | 4850 |
4×120 | 1.6 | 2.6 | 46.5 | 5965 |
4×150 | 1.8 | 2.8 | 54.6 | 8020 |
4×185 | 2.0 | 3.0 | 60.3 | 9930 |
4×240 | 2.2 | 3.3 | 68.4 | 12920 |
4×300 | 2.4 | 3.5 | 75.5 | 15995 |
5×1.5 | 1.0 | 1.3 | 14.3 | 265 |
6×1.5 | 1.0 | 1.3 | 15.6 | 305 |
7×1.5 | 1.0 | 1.3 | 15.6 | 320 |
8×1.5 | 1.0 | 1.4 | 18.4 | 425 |
9×1.5 | 1.0 | 1.5 | 19.9 | 440 |
10×1.5 | 1.0 | 1.5 | 20.2 | 495 |
12×1.5 | 1.0 | 1.5 | 20.9 | 530 |
14×1.5 | 1.0 | 1.6 | 21.9 | 630 |
16×1.5 | 1.0 | 1.6 | 23.3 | 690 |
19×1.5 | 1.0 | 1.6 | 24.6 | 790 |
20×1.5 | 1.0 | 1.7 | 26.1 | 880 |
23×1.5 | 1.0 | 1.8 | 28.4 | 1030 |
24×1.5 | 1.0 | 1.8 | 29.2 | 1035 |
27×1.5 | 1.0 | 1.8 | 29.9 | 1080 |
30×1.5 | 1.0 | 1.9 | 31.1 | 1250 |
33×1.5 | 1.0 | 1.9 | 32.3 | 1335 |
37×1.5 | 1.0 | 2.0 | 33.8 | 1445 |
44×1.5 | 1.0 | 2.2 | 38.4 | 1765 |
5×2.5 | 1.0 | 1.3 | 14.5 | 340 |
6×2.5 | 1.0 | 1.4 | 17.0 | 395 |
7×2.5 | 1.0 | 1.4 | 17.0 | 420 |
8×2.5 | 1.0 | 1.5 | 20.0 | 535 |
9×2.5 | 1.0 | 1.5 | 21.5 | 560 |
10×2.5 | 1.0 | 1.5 | 21.8 | 620 |
12×2.5 | 1.0 | 1.6 | 22.7 | 680 |
14×2.5 | 1.0 | 1.6 | 23.9 | 810 |
16×2.5 | 1.0 | 1.7 | 25.4 | 895 |
19×2.5 | 1.0 | 1.7 | 26.8 | 1000 |
20×2.5 | 1.0 | 1.8 | 28.4 | 1140 |
23×2.5 | 1.0 | 1.9 | 30.9 | 1325 |
24×2.5 | 1.0 | 1.9 | 31.8 | 1340 |
27×2.5 | 1.0 | 1.9 | 32.5 | 1395 |
30×2.5 | 1.0 | 2.0 | 33.9 | 1620 |
33×2.5 | 1.0 | 2.0 | 35.2 | 1735 |
37×2.5 | 1.0 | 2.1 | 36.8 | 1865 |
44×2.5 | 1.0 | 2.3 | 41.8 | 2295 |
