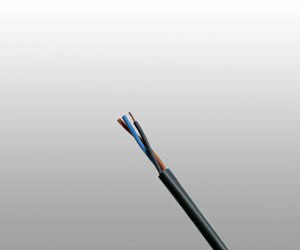

P18 RU 0.6/1kV
Applications :
- These cables are flame retardant, low smoke, halogen freeand mud resistant, used for control, power and lighting systems.
Standards :
-
IEC 60092-353 IEC 60092-351 IEC 60092-359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1,2 IEC 61034-1,2 NEK 606:2004

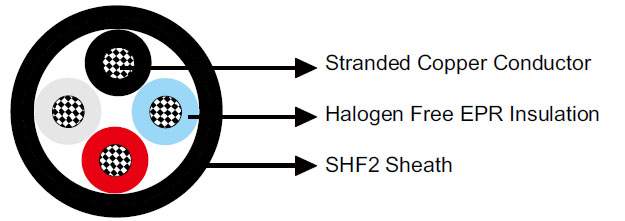

Construction :
- Conductors : Tinned annealed stranded copper to IEC 60228 class 2.
- Insulation : Halogen-free EPR.
- Outer Sheath :Halogen free thermosetting compound, SHF2, coloured black.
Electrical Characteristics :
-
Nominal Cross Section Area mm² 1.5 2.5 4 6 10 16 25 35 Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 4 5.1 6.5 7.4 Maximum DC Resistant@20℃ Ω/km 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529 Continuous Current Rating@45℃1 Core A 23 30 40 52 72 96 127 157 Continuous Current Rating@45℃2 Core A 20 26 34 44 61 82 108 133 Continuous Current Rating@45℃3&4 Core A 16 21 28 36 50 67 89 110 Short Circuit Current 1s A 210 360 570 860 1430 2290 3580 5010 Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 Nominal Cross Section Area mm² 50 70 95 120 150 185 240 300 Nominal Conductor Diameter mm 8.7 10.3 12.2 13.8 15.1 17.0 19.6 21.9 Maximum DC Resistant@20℃ Ω/km 0.391 0.27 0.195 0.154 0.126 0.1 0.0762 0.0607 Continuous Current Rating@45℃1 Core A 196 242 293 339 389 444 522 601 Continuous Current Rating@45℃2 Core A 167 206 249 288 331 444 444 511 Continuous Current Rating@45℃3&4 Core A 137 169 205 237 272 311 365 421 Short Circuit Current 1s A 7150 10020 13590 17170 21460 26470 34340 42930 Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
Ambient Temperature Correction Factors :
-
Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80 Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight :
Construction No. of cores×Cross section(mm²) | Nominal Insulation Thickness mm | Nominal Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
1×1.5 | 1.0 | 1.0 | 6.0 | 60 |
1×2.5 | 1.0 | 1.0 | 6.5 | 80 |
1×4 | 1.0 | 1.0 | 7.1 | 110 |
1×6 | 1.0 | 1.0 | 7.6 | 130 |
1×10 | 1.0 | 1.1 | 8.5 | 165 |
1×16 | 1.0 | 1.1 | 9.8 | 235 |
1×25 | 1.2 | 1.2 | 11.7 | 355 |
1×35 | 1.2 | 1.2 | 12.8 | 455 |
1×50 | 1.4 | 1.3 | 14.4 | 595 |
1×70 | 1.4 | 1.4 | 16.3 | 805 |
1×95 | 1.6 | 1.5 | 18.7 | 1090 |
1×120 | 1.6 | 1.5 | 20.3 | 1345 |
1×150 | 1.8 | 1.6 | 22.4 | 1635 |
1×185 | 2.0 | 1.7 | 24.9 | 2075 |
1×240 | 2.2 | 1.8 | 28.1 | 2660 |
1×300 | 2.4 | 1.9 | 30.8 | 3340 |
2×1.5 | 1.0 | 1.1 | 9.7 | 145 |
2×2.5 | 1.0 | 1.1 | 10.5 | 175 |
2×4 | 1.0 | 1.2 | 11.6 | 225 |
2×6 | 1.0 | 1.2 | 12.9 | 295 |
2×10 | 1.0 | 1.3 | 14.8 | 420 |
2×16 | 1.0 | 1.4 | 17.2 | 605 |
2×25 | 1.2 | 1.5 | 21.3 | 940 |
2×35 | 1.2 | 1.6 | 23.3 | 1185 |
2×50 | 1.4 | 1.8 | 26.9 | 1585 |
2×70 | 1.4 | 1.9 | 31.9 | 2280 |
2×95 | 1.6 | 2.1 | 36.9 | 3090 |
2×120 | 1.6 | 2.2 | 40.3 | 3780 |
2×150 | 1.8 | 2.4 | 44.7 | 4640 |
2×185 | 2.0 | 2.6 | 49.5 | 5750 |
2×240 | 2.2 | 2.8 | 56.1 | 7460 |
2×300 | 2.4 | 3.0 | 62.0 | 9265 |
3×1.5 | 1.0 | 1.1 | 10.3 | 165 |
3×2.5 | 1.0 | 1.2 | 11.1 | 205 |
3×4 | 1.0 | 1.2 | 12.5 | 280 |
3×6 | 1.0 | 1.3 | 13.6 | 360 |
3×10 | 1.0 | 1.3 | 16.0 | 530 |
3×16 | 1.0 | 1.4 | 18.5 | 770 |
3×25 | 1.2 | 1.6 | 22.9 | 1200 |
3×35 | 1.2 | 1.7 | 25.0 | 1525 |
3×50 | 1.4 | 1.8 | 28.7 | 2030 |
3×70 | 1.4 | 2.0 | 32.6 | 2765 |
3×95 | 1.6 | 2.2 | 37.6 | 3745 |
3×120 | 1.6 | 2.3 | 41.2 | 4640 |
3×150 | 1.8 | 2.5 | 45.7 | 5675 |
3×185 | 2.0 | 2.7 | 51.2 | 7200 |
3×240 | 2.2 | 3.0 | 57.5 | 9300 |
3×300 | 2.4 | 3.2 | 66.8 | 12080 |
4×1.5 | 1.0 | 1.2 | 11.2 | 200 |
4×2.5 | 1.0 | 1.2 | 12.4 | 255 |
4×4 | 1.0 | 1.3 | 13.7 | 340 |
4×6 | 1.0 | 1.3 | 15.2 | 455 |
4×10 | 1.0 | 1.4 | 17.5 | 665 |
4×16 | 1.0 | 1.5 | 20.4 | 970 |
4×25 | 1.2 | 1.7 | 25.5 | 1530 |
4×35 | 1.2 | 1.8 | 27.8 | 1955 |
4×50 | 1.4 | 2.0 | 31.9 | 2600 |
4×70 | 1.4 | 2.1 | 36.3 | 3540 |
4×95 | 1.6 | 2.4 | 42.0 | 4815 |
4×120 | 1.6 | 2.5 | 46.0 | 5965 |
4×150 | 1.8 | 2.7 | 53.5 | 7720 |
4×185 | 2.0 | 2.9 | 59.2 | 9570 |
4×240 | 2.2 | 3.2 | 67.3 | 12480 |
4×300 | 2.4 | 3.5 | 74.6 | 15870 |
5×1.5 | 1.0 | 1.2 | 13.1 | 245 |
6×1.5 | 1.0 | 1.3 | 14.4 | 275 |
7×1.5 | 1.0 | 1.3 | 14.4 | 285 |
8×1.5 | 1.0 | 1.4 | 16.9 | 380 |
9×1.5 | 1.0 | 1.4 | 18.1 | 395 |
10×1.5 | 1.0 | 1.4 | 18.4 | 435 |
12×1.5 | 1.0 | 1.4 | 19.0 | 485 |
14×1.5 | 1.0 | 1.5 | 20.2 | 565 |
16×1.5 | 1.0 | 1.5 | 21.3 | 615 |
19×1.5 | 1.0 | 1.6 | 22.6 | 715 |
20×1.5 | 1.0 | 1.6 | 23.8 | 780 |
23×1.5 | 1.0 | 1.7 | 25.9 | 905 |
24×1.5 | 1.0 | 1.7 | 26.6 | 920 |
27×1.5 | 1.0 | 1.7 | 27.2 | 985 |
30×1.5 | 1.0 | 1.8 | 28.4 | 1110 |
33×1.5 | 1.0 | 1.8 | 29.5 | 1190 |
37×1.5 | 1.0 | 1.9 | 30.8 | 1315 |
44×1.5 | 1.0 | 2.0 | 34.8 | 1560 |
5×2.5 | 1.0 | 1.3 | 14.3 | 305 |
6×2.5 | 1.0 | 1.3 | 15.6 | 360 |
7×2.5 | 1.0 | 1.3 | 15.6 | 390 |
8×2.5 | 1.0 | 1.4 | 18.4 | 495 |
9×2.5 | 1.0 | 1.5 | 19.9 | 505 |
10×2.5 | 1.0 | 1.5 | 20.2 | 570 |
12×2.5 | 1.0 | 1.5 | 20.9 | 625 |
14×2.5 | 1.0 | 1.5 | 21.9 | 735 |
16×2.5 | 1.0 | 1.6 | 23.3 | 810 |
19×2.5 | 1.0 | 1.6 | 24.6 | 935 |
20×2.5 | 1.0 | 1.7 | 26.1 | 1035 |
23×2.5 | 1.0 | 1.8 | 28.4 | 1205 |
24×2.5 | 1.0 | 1.8 | 29.2 | 1220 |
27×2.5 | 1.0 | 1.8 | 29.9 | 1295 |
30×2.5 | 1.0 | 1.9 | 31.1 | 1475 |
33×2.5 | 1.0 | 1.9 | 32.3 | 1585 |
37×2.5 | 1.0 | 2.0 | 33.8 | 1730 |
44×2.5 | 1.0 | 2.2 | 38.4 | 2100 |
