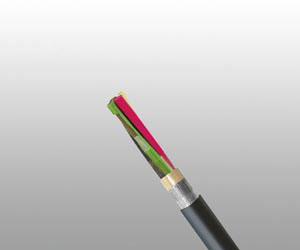

P5 or P5/P12 BFOU 0.6/1KV
Applications :
- These cables are fire resistant, flame retardant, low smoke,halogen free and mud resistant, used for control, power and lighting systems.
Standards :
-
IEC 60092-353 IEC 60092-351 IEC 60092-359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1,2 IEC 61034-1,2 NEK 606:2004

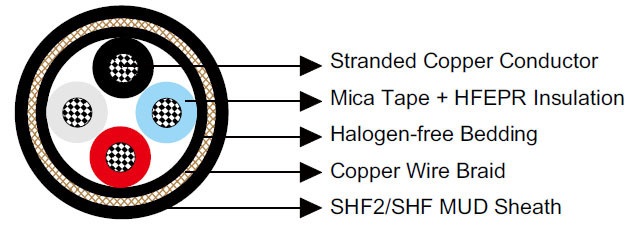

Construction :
- Conductors : Tinned annealed stranded compacted copper to IEC 60228 class 2.
- Insulation : Mica tape + Halogen free EPR.
- Bedding : Halogen free compound.
- Armour : Tinned copper wire braid.
- Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE P5). Halogen free, mud resistant thermosetting compound, SHF MUD (for TYPE P5/P12), coloured black.
Electrical Characteristics :
-
Nominal Cross Section Area mm² 1.5 2.5 4 6 10 16 25 35 50 Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 4 5.1 6.5 7.4 8.7 Maximum DC Resistant@20℃ Ω/km 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529 0.391 Continuous Current Rating@45℃1 Core A 23 30 40 52 72 96 127 157 196 Continuous Current Rating@45℃2 Core A 20 26 34 44 61 82 108 133 167 Continuous Current Rating@45℃3&4 Core A 16 21 28 36 50 67 89 110 137 Short Circuit Current 1s A 210 360 570 860 1430 2290 3580 5010 7150 Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 -
Nominal Cross Section Area mm² 70 95 120 150 185 240 300 400 630 Nominal Conductor Diameter mm 10.3 12.2 13.8 15.1 17.0 19.6 21.9 24.6 32.5 Maximum DC Resistant@20℃ Ω/km 0.27 0.195 0.154 0.126 0.1 0.0762 0.0607 0.0475 0.0286 Continuous Current Rating@45℃1 Core A 242 293 339 389 444 522 601 690 890 Continuous Current Rating@45℃2 Core A 206 249 288 331 444 444 511 587 757 Continuous Current Rating@45℃3&4 Core A 169 205 237 272 311 365 421 483 623 Short Circuit Current 1s A 10020 13590 17170 21460 26470 34340 42930 57230 90140 Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 - Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.
Ambient Temperature Correction Factors :
-
Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80 Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight :
Construction No. of cores×Cross section(mm²) | Nominal Insulation Thickness mm | Nominal Sheath Thickness mm |
Nominal Overall Diameter mm | Nominal Weight kg/km | |
Inner | Outer | ||||
1×1.5 | 1.0 | 1.1 | 1.1 | 9.3 | 145 |
1×2.5 | 1.0 | 1.1 | 1.1 | 9.7 | 160 |
1×4 | 1.0 | 1.1 | 1.1 | 10.4 | 220 |
1×6 | 1.0 | 1.1 | 1.1 | 10.9 | 250 |
1×10 | 1.0 | 1.1 | 1.2 | 12.7 | 310 |
1×16 | 1.0 | 1.1 | 1.2 | 13.9 | 390 |
1×25 | 1.2 | 1.1 | 1.3 | 16.3 | 585 |
1×35 | 1.2 | 1.1 | 1.3 | 17.2 | 690 |
1×50 | 1.4 | 1.1 | 1.4 | 19.0 | 890 |
1×70 | 1.4 | 1.1 | 1.4 | 20.6 | 1110 |
1×95 | 1.6 | 1.1 | 1.5 | 23.1 | 1440 |
1×120 | 1.6 | 1.2 | 1.6 | 25.0 | 1735 |
1×150 | 1.8 | 1.2 | 1.7 | 27.0 | 2060 |
1×185 | 2.0 | 1.2 | 1.7 | 29.4 | 2545 |
1×240 | 2.2 | 1.2 | 1.8 | 32.6 | 3170 |
1×300 | 2.4 | 1.2 | 1.9 | 35.3 | 3910 |
1×400 | 2.4 | 1.4 | 2.1 | 41.0 | 5100 |
1×630 | 2.8 | 1.4 | 2.3 | 48.5 | 7660 |
2×1.5 | 1.0 | 1.1 | 1.2 | 14.2 | 310 |
2×2.5 | 1.0 | 1.1 | 1.3 | 15.1 | 360 |
2×4 | 1.0 | 1.1 | 1.3 | 16.6 | 470 |
2×6 | 1.0 | 1.1 | 1.4 | 17.9 | 555 |
2×10 | 1.0 | 1.1 | 1.4 | 19.9 | 705 |
2×16 | 1.0 | 1.1 | 1.5 | 22.5 | 985 |
2×25 | 1.2 | 1.2 | 1.6 | 26.4 | 1360 |
2×35 | 1.2 | 1.2 | 1.7 | 28.4 | 1620 |
2×50 | 1.4 | 1.2 | 1.9 | 32.4 | 2290 |
2×70 | 1.4 | 1.2 | 2.1 | 38.0 | 3260 |
2×95 | 1.6 | 1.2 | 2.3 | 41.6 | 3910 |
2×120 | 1.6 | 1.4 | 2.4 | 45.3 | 4710 |
2×150 | 1.8 | 1.4 | 2.6 | 49.7 | 5670 |
2×185 | 2.0 | 1.4 | 2.7 | 54.3 | 6840 |
2×240 | 2.2 | 1.6 | 3.0 | 61.5 | 8790 |
2×300 | 2.4 | 1.6 | 3.2 | 67.8 | 10630 |
3×1.5 | 1.0 | 1.1 | 1.3 | 14.8 | 345 |
3×2.5 | 1.0 | 1.1 | 1.3 | 16.2 | 445 |
3×4 | 1.0 | 1.1 | 1.3 | 17.4 | 530 |
3×6 | 1.0 | 1.1 | 1.4 | 18.7 | 635 |
3×10 | 1.0 | 1.1 | 1.5 | 21.1 | 830 |
3×16 | 1.0 | 1.1 | 1.5 | 23.7 | 1160 |
3×25 | 1.2 | 1.2 | 1.7 | 28.1 | 1640 |
3×35 | 1.2 | 1.2 | 1.8 | 30.2 | 1980 |
3×50 | 1.4 | 1.2 | 2.0 | 34.3 | 2750 |
3×70 | 1.4 | 1.2 | 2.2 | 39.0 | 3675 |
3×95 | 1.6 | 1.4 | 2.4 | 44.7 | 4955 |
3×120 | 1.6 | 1.4 | 2.5 | 48.3 | 6035 |
3×150 | 1.8 | 1.4 | 2.7 | 53.2 | 7355 |
3×185 | 2.0 | 1.6 | 2.9 | 59.5 | 9025 |
3×240 | 2.2 | 1.6 | 3.2 | 66.5 | 11590 |
3×300 | 2.4 | 1.8 | 3.4 | 72.6 | 13740 |
4×1.5 | 1.0 | 1.1 | 1.3 | 16.4 | 400 |
4×2.5 | 1.0 | 1.1 | 1.3 | 17.3 | 505 |
4×4 | 1.0 | 1.1 | 1.4 | 18.8 | 620 |
4×6 | 1.0 | 1.1 | 1.4 | 20.1 | 750 |
4×10 | 1.0 | 1.1 | 1.5 | 22.7 | 985 |
4×16 | 1.0 | 1.2 | 1.6 | 25.9 | 1400 |
4×25 | 1.2 | 1.2 | 1.8 | 30.7 | 1995 |
4×35 | 1.2 | 1.2 | 1.9 | 33.1 | 2440 |
4×50 | 1.4 | 1.4 | 2.0 | 38.2 | 3430 |
4×70 | 1.4 | 1.4 | 2.2 | 42.7 | 4600 |
4×95 | 1.6 | 1.6 | 2.4 | 49.4 | 6135 |
4×120 | 1.6 | 1.6 | 2.5 | 53.6 | 7515 |
4×150 | 1.8 | 1.6 | 2.9 | 59.0 | 9010 |
4×185 | 2.0 | 1.6 | 3.1 | 64.7 | 11000 |
4×240 | 2.2 | 1.8 | 3.4 | 73.1 | 14160 |
4×300 | 2.4 | 1.8 | 3.7 | 80.7 | 17550 |
5×1.5 | 1.0 | 1.1 | 1.4 | 17.7 | 510 |
6×1.5 | 1.0 | 1.1 | 1.4 | 19.0 | 545 |
7×1.5 | 1.0 | 1.1 | 1.4 | 19.0 | 590 |
8×1.5 | 1.0 | 1.1 | 1.5 | 21.8 | 715 |
9×1.5 | 1.0 | 1.1 | 1.6 | 23.3 | 720 |
10×1.5 | 1.0 | 1.1 | 1.6 | 23.6 | 790 |
12×1.5 | 1.0 | 1.2 | 1.6 | 24.3 | 880 |
14×1.5 | 1.0 | 1.2 | 1.7 | 25.5 | 965 |
16×1.5 | 1.0 | 1.2 | 1.7 | 26.7 | 1035 |
19×1.5 | 1.0 | 1.2 | 1.7 | 27.4 | 1185 |
20×1.5 | 1.0 | 1.2 | 1.8 | 29.5 | 1260 |
23×1.5 | 1.0 | 1.2 | 1.9 | 31.8 | 1435 |
24×1.5 | 1.0 | 1.2 | 2.0 | 33.2 | 1510 |
27×1.5 | 1.0 | 1.2 | 2.0 | 33.9 | 1615 |
30×1.5 | 1.0 | 1.2 | 2.0 | 34.9 | 1735 |
32×1.5 | 1.0 | 1.4 | 2.0 | 35.5 | 1800 |
33×1.5 | 1.0 | 1.4 | 2.0 | 36.7 | 1940 |
37×1.5 | 1.0 | 1.4 | 2.0 | 38.0 | 2090 |
44×1.5 | 1.0 | 1.4 | 2.3 | 42.6 | 2460 |
5×2.5 | 1.0 | 1.1 | 1.4 | 18.8 | 595 |
6×2.5 | 1.0 | 1.1 | 1.4 | 20.4 | 650 |
7×2.5 | 1.0 | 1.1 | 1.4 | 20.4 | 700 |
8×2.5 | 1.0 | 1.1 | 1.5 | 23.5 | 790 |
9×2.5 | 1.0 | 1.1 | 1.6 | 25.1 | 860 |
10×2.5 | 1.0 | 1.1 | 1.6 | 25.4 | 955 |
12×2.5 | 1.0 | 1.2 | 1.6 | 26.1 | 1045 |
14×2.5 | 1.0 | 1.2 | 1.7 | 27.3 | 1160 |
16×2.5 | 1.0 | 1.2 | 1.8 | 28.8 | 1265 |
19×2.5 | 1.0 | 1.2 | 1.8 | 29.6 | 1445 |
20×2.5 | 1.0 | 1.2 | 1.9 | 31.8 | 1545 |
23×2.5 | 1.0 | 1.4 | 2.0 | 34.7 | 1805 |
24×2.5 | 1.0 | 1.4 | 2.0 | 35.8 | 1850 |
27×2.5 | 1.0 | 1.4 | 2.0 | 35.4 | 1970 |
30×2.5 | 1.0 | 1.4 | 2.1 | 38.1 | 2235 |
33×2.5 | 1.0 | 1.4 | 2.2 | 39.6 | 2390 |
37×2.5 | 1.0 | 1.4 | 2.3 | 41.2 | 2610 |
44×2.5 | 1.0 | 1.4 | 2.4 | 46.2 | 3075 |
