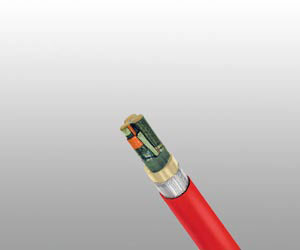

P6 or P6/P13 BFOU 3.6/6kV
Applications :
- These cables are fire resistant, flame retardant, low smoke, halogen free and mud resistant, used for fixed installation for medium voltage power.
Standards :
-
IEC 60092-353 IEC 60092-351 IEC 60092-359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1,2 IEC 61034-1,2 NEK 606:2004

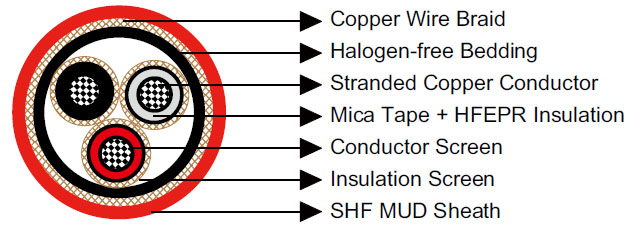

Construction :
- Conductors :Circular tinned annealed stranded compacted copper to IEC 60228 class 2.
- Conductor Screen : Semi conducting material.
- Insulation : Mica tape + Halogen free EPR.
- Insulation Screen : Semi conducting material and tinned copper wire braid.
- Bedding : Halogen free compound.
- Armour : Tinned copper wire braid.
- Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE P6), or halogen free mud resistant thermosetting compound, SHF MUD (for TYPE P6/P13), coloured red.
Electrical Characteristics :
-
Nominal Cross Section Area mm² 25 35 50 70 95 120 150 Nominal Conductor Diameter mm 6.5 7.4 8.7 10.3 12.2 13.8 15.1 Maximum DC Resistant@20℃ Ω/km 0.734 0.529 0.391 0.27 0.195 0.154 0.126 Continuous Current Rating@45℃1 Core A 127 157 196 242 293 339 389 Continuous Current Rating@45℃3 Core A 89 110 137 169 205 237 272 Short Circuit Current 1s A 3580 5010 7150 10020 13590 17170 21460 Operating Voltage KV 3.6/6 3.6/6 3.6/6 3.6/6 3.6/6 3.6/6 3.6/6 -
Nominal Cross Section Area mm² 185 240 300 400 500 630 Nominal Conductor Diameter mm 17.0 19.6 21.9 24.5 27.5 32.3 Maximum DC Resistant@20℃ Ω/km 0.1 0.0762 0.0607 0.0475 0.0369 0.0286 Continuous Current Rating@45℃1 Core A 444 522 601 690 780 890 Continuous Current Rating@45℃3 Core A 311 365 421 483 546 623 Short Circuit Current 1s A 26470 34340 42930 57230 71540 90140 Operating Voltage KV 3.6/6 3.6/6 3.6/6 8.7/15 8.7/15 8.7/15
Ambient Temperature Correction Factors :
-
Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80 Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47
Mechanical and Thermal Properties :
- Bending Radius :15×OD (during installation); 9×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight :
Construction No. of cores×Cross section (mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
Inner | Outer | ||||
1×16 | 2.5 | 1.5 | 1.2 | 24.8 | 950 |
1×25 | 2.5 | 1.6 | 1.2 | 26.3 | 1110 |
1×35 | 2.5 | 1.6 | 1.2 | 27.6 | 1260 |
1×50 | 2.5 | 1.7 | 1.3 | 29.1 | 1460 |
1×70 | 2.5 | 1.7 | 1.3 | 30.9 | 1740 |
1×95 | 2.5 | 1.8 | 1.4 | 33.2 | 2110 |
1×120 | 2.5 | 1.9 | 1.4 | 34.9 | 2430 |
1×150 | 2.5 | 1.9 | 1.4 | 36.9 | 2890 |
1×185 | 2.5 | 2.0 | 1.5 | 39.1 | 3370 |
1×240 | 2.6 | 2.1 | 1.6 | 42.2 | 4100 |
1×300 | 2.8 | 2.2 | 1.6 | 44.7 | 4810 |
1×400 | 3.0 | 2.3 | 1.7 | 48.1 | 5810 |
1×500 | 3.2 | 2.5 | 1.8 | 52.1 | 7030 |
1×630 | 3.2 | 2.6 | 1.9 | 56.5 | 8630 |
3×16 | 2.5 | 2.3 | 1.7 | 48.2 | 3550 |
3×25 | 2.5 | 2.5 | 1.8 | 51.5 | 4180 |
3×35 | 2.5 | 2.6 | 1.9 | 54.7 | 4820 |
3×50 | 2.5 | 2.7 | 1.9 | 57.4 | 5490 |
3×70 | 2.5 | 2.8 | 2.0 | 61.6 | 6590 |
3×95 | 2.5 | 3.0 | 2.1 | 66.2 | 7920 |
3×120 | 2.5 | 3.1 | 2.2 | 70.1 | 9150 |
3×150 | 2.5 | 3.3 | 2.3 | 74.0 | 10460 |
3×185 | 2.5 | 3.4 | 2.4 | 78.6 | 12010 |
3×240 | 2.6 | 3.7 | 2.6 | 86.3 | 14690 |
3×300 | 2.8 | 3.9 | 2.8 | 92.3 | 17130 |
