Applications :

• These 75Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.

Standards :

• IEC 60092-350	IEC 60332-3-22
  IEC 60754-1,2	IEC 61034-1,2
  NEK 606:2004

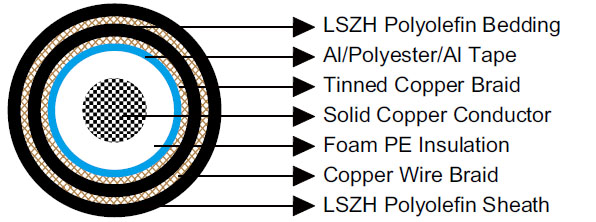

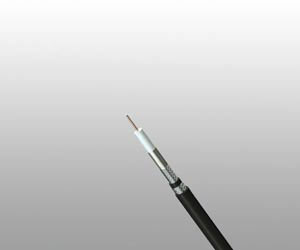

Construction :

• Conductors : 14AWG solid bare copper.
• Insulation : Foam PE.
• Shielding1 : Al/Polyester/Al tape.
• Shielding2 : Tinned copper braid.
• Bedding : Low smoke and halogen-free polyolefin, coloured black.
• Armour : Copper wire braid.
• Outer Sheath : Low smoke and halogen-free polyolefin.

Electrical Characteristics :

• AWG		14
  Nominal Conductor Diameter	mm	1.6
  Impedance	Ω	75+/-5
  Nominal Attenuation@100MHz	dB/100m	4.5
  Nominal Attenuation@270MHz	dB/100m	7.6
  Nominal Attenuation@540MHz	dB/100m	10.8
  Nominal Attenuation@750MHz	dB/100m	12.8
  Nominal Attenuation@1000MHz	dB/100m	14.8
  Capacitance	pF/m	53.5
  Velocity of Propagation	%	83
  Conductor DCR	Ω/km	8.5
  Shield DCR	Ω/km	12.1
  Inductance	μH/m	0.32
  Time Delay	ns/m	4

Mechanical and Thermal Properties :

• Bending Radius : 15×OD.
• Temperature Range : -30℃ ~ +75℃.

Dimensions and Weight :



Nominal Inner Conductor Diameter mm	Nominal Insulation Thickness mm	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1.6	2.7	1.7	15.0	353
