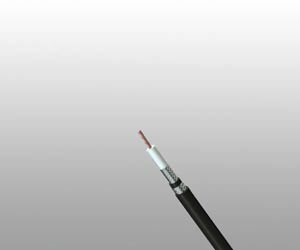

RG58 Armoured Coaxial Cable



Applications :

  • These 50Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.

Standards :

  • IEC 60092-350 IEC 60332-3-22
    IEC 60754-1,2 IEC 61034-1,2
    NEK 606:2004

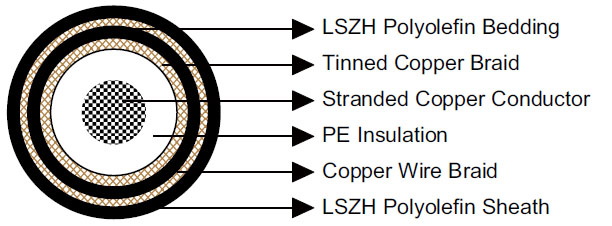

Construction :

  • Conductors : 21AWG tinned copper.
  • Insulation : PE.
  • Shielding : Tinned copper braid.
  • Bedding : Low smoke and halogen-free polyolefin, coloured black.
  • Armour : Copper wire braid.
  • Outer Sheath : Low smoke and halogen-free polyolefin.

Electrical Characteristics :

  • AWG   21
    Conductor Construction No./Diameter of Wires -/mm 19/0.18
    Nominal Conductor Diameter mm 0.89
    Impedance Ω 50+/-3
    Nominal Attenuation@100MHz dB/100m 15.7
    Nominal Attenuation@200MHz dB/100m 22.3
    Nominal Attenuation@400MHz dB/100m 32.8
    Nominal Attenuation@700MHz dB/100m 46.6
    Nominal Attenuation@900MHz dB/100m 54.1
    Nominal Attenuation@1000MHz dB/100m 56.1
    Capacitance pF/m 101
    Velocity of Propagation % 66
    Conductor DCR Ω/km 35.4
    Inductance μH/m 0.246
    Time Delay ns/m 5.0

Mechanical and Thermal Properties :

  • Bending Radius : 15×OD.
  • Temperature Range : -30℃ ~ +75℃.

Dimensions and Weight :



Nominal Inner Conductor Diameter mm Nominal Insulation Thickness mm Nominal Sheath Thickness mm Nominal Overall Diameter mm Nominal Weight kg/km
0.89 1.0 1.14 8.6 149
