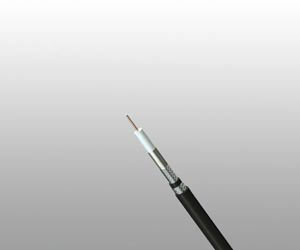

RG6 Armoured Coaxial Cable



Applications :

  • These 75Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.

Standards :

  • IEC 60092-350 IEC 60332-3-22
    IEC 60754-1,2 IEC 61034-1,2
    NEK 606:2004

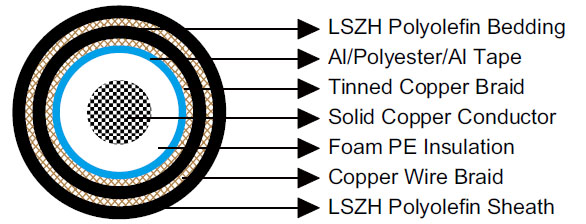

Construction :

  • Conductors : 18AWG solid bare copper.
  • Insulation : Foam PE.
  • Shielding1 : Al/Polyester/Al tape.
  • Shielding2 : Tinned copper braid.
  • Bedding : Low smoke and halogen-free polyolefin, coloured black.
  • Armour : Copper wire braid.
  • Outer Sheath : Low smoke and halogen-free polyolefin.

Electrical Characteristics :

  • AWG   18
    Nominal Conductor Diameter mm 1.0
    Impedance Ω 75+/-5
    Nominal Attenuation@100MHz dB/100m 6.9
    Nominal Attenuation@200MHz dB/100m 9.0
    Nominal Attenuation@300MHz dB/100m 11.8
    Nominal Attenuation@400MHz dB/100m 13.1
    Nominal Attenuation@500MHz dB/100m 15.4
    Nominal Attenuation@900MHz dB/100m 21.5
    Nominal Attenuation@1700MHz dB/100m 29.4
    Capacitance pF/m 53.5
    Velocity of Propagation % 83
    Conductor DCR Ω/km 21.4
    Shield DCR Ω/km 7.5
    Inductance μH/m 0.32
    Time Delay ns/m 4

Mechanical and Thermal Properties :

  • Bending Radius : 15×OD.
  • Temperature Range : -30℃ ~ +75℃.

Dimensions and Weight :



Nominal Inner Conductor Diameter mm Nominal Insulation Thickness mm Nominal Sheath Thickness mm Nominal Overall Diameter mm Nominal Weight kg/km
1.0 1.8 1.2 11.2 208
