S10 IYOI(c) 60 V
Applications :
- These cables are flame retardant, low smoke and halogen free, used for indoor telecommunication.
Standards :
-
IEC 60092-359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1,2 IEC 61034-1,2 NEK 606:2004

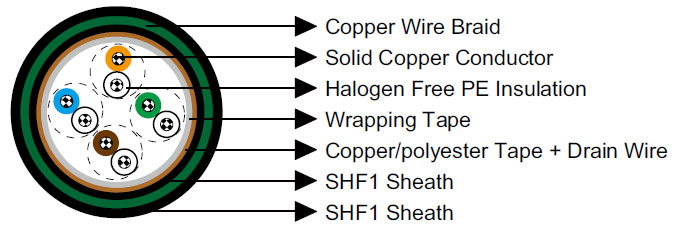

Construction :
- Conductors : Solid tinned copper, 0.5mm.
- Insulation : Halogen-free thermoplastic compound PE.
- Twinning : Colour coded cores twisted together. Pairs are cross-stranded to finished cable or 10 pair units. The units are stranded to 20 - 30 - 50 pair cables. 2 pair is stranded as a star quad.
- Wrapping : Polyester tape.
- Collective Shielding : The cable core is screened by copper backed polyester tape in contact with a 0.5mm solid tinned drain wire.
- Bedding : Halogen-free thermoplastic compound, type SHF1, coloured grey.
- Armour : Copper wire braid.
- Outer Sheath : Halogen-free thermoplastic compound, type SHF1, coloured grey.
Electrical Characteristics :
-
Nominal Conductor Diameter mm 0.5 Maximum Resistant@20℃ Ω/km 95 Nominal Inductance@1KHz MH/km 0.61 Mutual Capacitance 1-pair cable nF/km 90 Mutual Capacitance 2-pair cable nF/km 80 Mutual Capacitance 4-pair and above cable nF/km 70 Operating Voltage V 60
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -10℃ ~ +60℃.
Dimensions and Weight :
Construction No. of elements×No. of cores in element×Core diameter (mm) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
Inner | Outer | ||||
1×2×0.5 | 0.2 | 1.2 | 1.2 | 8.0 | 95 |
2×2×0.5 | 0.2 | 1.2 | 1.2 | 9.0 | 110 |
4×2×0.5 | 0.2 | 1.2 | 1.2 | 10.0 | 145 |
10×2×0.5 | 0.2 | 1.5 | 1.5 | 12.0 | 200 |
20×2×0.5 | 0.2 | 1.5 | 1.5 | 15.0 | 330 |
30×2×0.5 | 0.2 | 1.5 | 1.5 | 17.0 | 430 |
50×2×0.5 | 0.2 | 1.5 | 1.5 | 20.0 | 580 |
