S11 RU(i) 250 V
![](../../images/line.jpg)
Applications :
- These unarmoured cables are flame retardant, low smoke and halogen free, used for instrumentation, communication, control and alarm systems.
Standards :
-
IEC 60092-376 IEC 60092-351 IEC 60092-359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1,2 IEC 61034-1,2 NEK 606:2004
![]() |
![]() |
Construction :

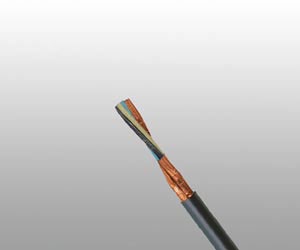

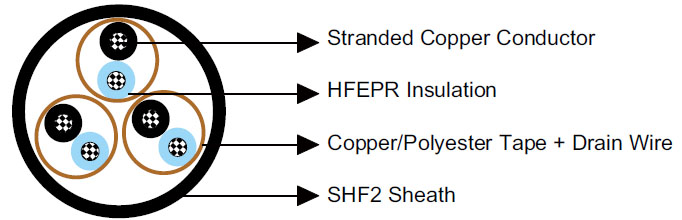

- Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2.
- Insulation : Halogen free EPR compound.
- Twinning : Colour coded cores twisted together.
- Individual Shielding : Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
- Outer Sheath : Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).
Electrical Characteristics :
-
Nominal Cross Section Area mm² 0.75 1.0 1.5 2.5 Nominal Conductor Diameter mm 1.1 1.3 1.6 2.0 Maximum Resistant@20℃ Ω/km 26.3 19.3 12.9 8.02 Mutual Capacitance nF/km 90 100 110 120 Nominal Inductance@1KHz MH/km 0.686 0.649 0.637 0.598 Maximum L/R@1KHz μH/Ω 20 25 35 50 Operating Voltage V 250 250 250 250
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight :
Construction No. of elements×No. of cores in element×Cross section (mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
1×2×0.75 | 0.6 | 1.0 | 7.6 | 95 |
2×2×0.75 | 0.6 | 1.1 | 9.7 | 180 |
4×2×0.75 | 0.6 | 1.2 | 12.1 | 255 |
7×2×0.75 | 0.6 | 1.3 | 14.4 | 380 |
8×2×0.75 | 0.6 | 1.3 | 15.6 | 425 |
12×2×0.75 | 0.6 | 1.5 | 19.0 | 610 |
16×2×0.75 | 0.6 | 1.5 | 21.0 | 785 |
19×2×0.75 | 0.6 | 1.6 | 22.4 | 895 |
24×2×0.75 | 0.6 | 1.7 | 25.6 | 1135 |
32×2×0.75 | 0.6 | 1.8 | 28.4 | 1440 |
1×3×0.75 | 0.6 | 1.0 | 8.0 | 110 |
2×3×0.75 | 0.6 | 1.2 | 11.0 | 180 |
3×3×0.75 | 0.6 | 1.2 | 12.7 | 265 |
4×3×0.75 | 0.6 | 1.2 | 13.8 | 325 |
7×3×0.75 | 0.6 | 1.4 | 16.7 | 500 |
8×3×0.75 | 0.6 | 1.4 | 18.0 | 540 |
12×3×0.75 | 0.6 | 1.6 | 22.2 | 815 |
16×3×0.75 | 0.6 | 1.6 | 24.7 | 1045 |
19×3×0.75 | 0.6 | 1.7 | 26.2 | 1205 |
24×3×0.75 | 0.6 | 1.9 | 30.5 | 1545 |
1×2×1.0 | 0.6 | 1.0 | 8.1 | 110 |
2×2×1.0 | 0.6 | 1.1 | 10.4 | 215 |
4×2×1.0 | 0.6 | 1.2 | 12.9 | 310 |
7×2×1.0 | 0.6 | 1.4 | 15.5 | 475 |
8×2×1.0 | 0.6 | 1.4 | 17.0 | 540 |
12×2×1.0 | 0.6 | 1.5 | 20.5 | 760 |
16×2×1.0 | 0.6 | 1.5 | 22.9 | 995 |
19×2×1.0 | 0.6 | 1.7 | 24.1 | 1135 |
24×2×1.0 | 0.6 | 1.8 | 27.8 | 1450 |
32×2×1.0 | 0.6 | 1.9 | 30.8 | 1850 |
1×3×1.0 | 0.6 | 1.0 | 8.5 | 125 |
3×3×1.0 | 0.6 | 1.3 | 13.4 | 320 |
4×3×1.0 | 0.6 | 1.3 | 14.8 | 395 |
7×3×1.0 | 0.6 | 1.5 | 17.9 | 615 |
12×3×1.0 | 0.6 | 1.6 | 23.7 | 990 |
16×3×1.0 | 0.6 | 1.7 | 26.5 | 1295 |
19×3×1.0 | 0.6 | 1.8 | 28.0 | 1475 |
24×3×1.0 | 0.6 | 2.0 | 32.6 | 1900 |
1×2×1.5 | 0.7 | 1.0 | 9.1 | 140 |
2×2×1.5 | 0.7 | 1.2 | 11.7 | 280 |
4×2×1.5 | 0.7 | 1.3 | 14.9 | 410 |
7×2×1.5 | 0.7 | 1.5 | 18.0 | 635 |
8×2×1.5 | 0.7 | 1.5 | 19.7 | 720 |
12×2×1.5 | 0.7 | 1.6 | 23.8 | 1015 |
16×2×1.5 | 0.7 | 1.6 | 26.6 | 1330 |
19×2×1.5 | 0.7 | 1.9 | 28.3 | 1525 |
24×2×1.5 | 0.7 | 2.0 | 32.6 | 1945 |
32×2×1.5 | 0.7 | 2.2 | 36.1 | 2475 |
1×3×1.5 | 0.7 | 1.0 | 9.5 | 160 |
2×3×1.5 | 0.7 | 1.3 | 14.0 | 285 |
3×3×1.5 | 0.7 | 1.3 | 15.5 | 425 |
4×3×1.5 | 0.7 | 1.3 | 17.0 | 525 |
7×3×1.5 | 0.7 | 1.6 | 20.9 | 830 |
8×3×1.5 | 0.7 | 1.6 | 22.5 | 900 |
12×3×1.5 | 0.7 | 1.8 | 27.6 | 1340 |
16×3×1.5 | 0.7 | 1.9 | 31.1 | 1770 |
19×3×1.5 | 0.7 | 2.0 | 32.8 | 2020 |
24×3×1.5 | 0.7 | 2.2 | 38.4 | 2610 |
1×2×2.5 | 0.7 | 1.0 | 9.8 | 175 |
1×3×2.5 | 0.7 | 1.2 | 10.4 | 205 |
