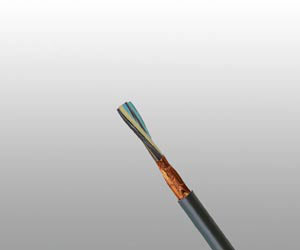

S12 RU(c) 250 V
![](../../images/line.jpg)
Applications :
- These unarmoured cables are flame retardant, low smoke and halogen free, used for instrumentation, communication, control and alarm systems.
Standards :
-
IEC 60092-376 IEC 60092-351 IEC 60092-359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1,2 IEC 61034-1,2 NEK 606:2004
![]() |
![]() |
Construction :
- Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2.
- Insulation : Halogen free EPR compound.
- Twinning : Colour coded cores twisted together.

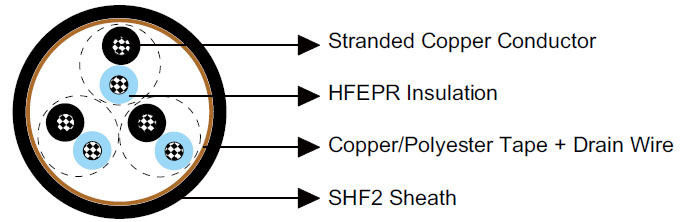

- Collective Shielding : Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
- Outer Sheath : Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).
Electrical Characteristics :
-
Nominal Cross Section Area mm² 0.75 1.0 1.5 Nominal Conductor Diameter mm 1.1 1.3 1.6 Maximum Resistant@20℃ Ω/km 26.3 19.3 12.9 Mutual Capacitance nF/km 80 90 100 Nominal Inductance@1KHz MH/km 0.682 0.645 0.632 Maximum L/R@1KHz μH/Ω 20 25 35 Operating Voltage V 250 250 250
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight :
Construction No. of elements×No. of cores in element×Cross section (mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
2×2×0.75 | 0.6 | 1.1 | 9.4 | 160 |
4×2×0.75 | 0.6 | 1.1 | 11.5 | 215 |
7×2×0.75 | 0.6 | 1.3 | 13.6 | 300 |
8×2×0.75 | 0.6 | 1.3 | 14.7 | 340 |
12×2×0.75 | 0.6 | 1.4 | 17.6 | 465 |
16×2×0.75 | 0.6 | 1.5 | 19.7 | 595 |
19×2×0.75 | 0.6 | 1.5 | 20.7 | 665 |
24×2×0.75 | 0.6 | 1.7 | 24.1 | 850 |
32×2×0.75 | 0.6 | 2.0 | 26.7 | 1065 |
2×3×0.75 | 0.6 | 1.1 | 11.0 | 170 |
3×3×0.75 | 0.6 | 1.1 | 12.1 | 235 |
4×3×0.75 | 0.6 | 1.2 | 13.1 | 280 |
7×3×0.75 | 0.6 | 1.4 | 15.7 | 410 |
8×3×0.75 | 0.6 | 1.4 | 17.5 | 490 |
12×3×0.75 | 0.6 | 1.5 | 20.6 | 645 |
16×3×0.75 | 0.6 | 1.6 | 23.1 | 835 |
19×3×0.75 | 0.6 | 1.7 | 24.3 | 940 |
24×3×0.75 | 0.6 | 1.8 | 28.2 | 1210 |
2×2×1.0 | 0.6 | 1.1 | 9.9 | 190 |
4×2×1.0 | 0.6 | 1.1 | 12.3 | 255 |
7×2×1.0 | 0.6 | 1.3 | 14.7 | 370 |
8×2×1.0 | 0.6 | 1.3 | 15.7 | 410 |
12×2×1.0 | 0.6 | 1.5 | 18.9 | 565 |
16×2×1.0 | 0.6 | 1.6 | 21.1 | 730 |
19×2×1.0 | 0.6 | 1.7 | 22.5 | 830 |
24×2×1.0 | 0.6 | 1.8 | 25.9 | 1050 |
32×2×1.0 | 0.6 | 2.1 | 28.7 | 1315 |
3×3×1.0 | 0.6 | 1.1 | 12.9 | 280 |
4×3×1.0 | 0.6 | 1.3 | 14.0 | 335 |
7×3×1.0 | 0.6 | 1.5 | 16.9 | 500 |
12×3×1.0 | 0.6 | 1.6 | 22.1 | 795 |
16×3×1.0 | 0.6 | 1.6 | 24.8 | 1025 |
19×3×1.0 | 0.6 | 1.8 | 26.3 | 1175 |
24×3×1.0 | 0.6 | 2.0 | 30.4 | 1490 |
2×2×1.5 | 0.7 | 1.2 | 11.3 | 250 |
4×2×1.5 | 0.7 | 1.2 | 14.1 | 345 |
7×2×1.5 | 0.7 | 1.4 | 17.2 | 515 |
8×2×1.5 | 0.7 | 1.4 | 18.4 | 575 |
12×2×1.5 | 0.7 | 1.6 | 22.4 | 810 |
16×2×1.5 | 0.7 | 1.7 | 25.0 | 1045 |
19×2×1.5 | 0.7 | 1.8 | 26.4 | 1175 |
24×2×1.5 | 0.7 | 1.9 | 30.7 | 1505 |
32×2×1.5 | 0.7 | 2.2 | 33.9 | 1890 |
2×3×1.5 | 0.7 | 1.2 | 13.5 | 265 |
3×3×1.5 | 0.7 | 1.2 | 14.9 | 380 |
4×3×1.5 | 0.7 | 1.3 | 16.3 | 465 |
7×3×1.5 | 0.7 | 1.5 | 19.8 | 705 |
8×3×1.5 | 0.7 | 1.5 | 21.5 | 820 |
12×3×1.5 | 0.7 | 1.7 | 26.2 | 1140 |
16×3×1.5 | 0.7 | 1.8 | 29.4 | 1475 |
19×3×1.5 | 0.7 | 1.9 | 30.9 | 1675 |
24×3×1.5 | 0.7 | 2.1 | 36.2 | 2160 |
