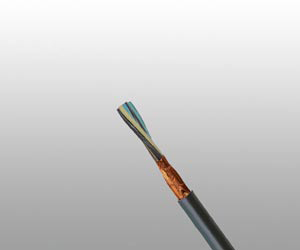

S14 BU(c) 250 V
Applications :
- These unarmoured cables are fire resistant, flame retardant, low smoke and halogen free, used for instrumentation, communication, control and alarm systems.
Standards :
-
IEC 60092-376 IEC 60092-351 IEC 60092-359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1,2 IEC 61034-1,2 NEK 606:2004 IEC 60331-21

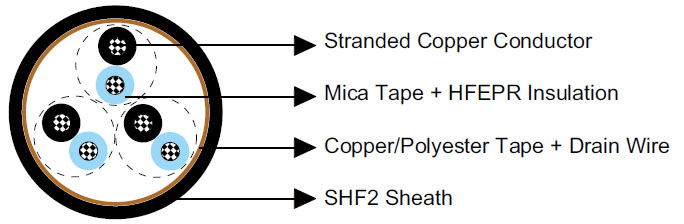

Construction :
- Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2.
- Insulation : Mica tape + Halogen free EPR compound.
- Twinning : Colour coded cores twisted together.
- Collective Shielding : Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
- Outer Sheath : Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).
Electrical Characteristics :
-
Nominal Cross Section Area mm² 0.75 1.0 1.5 Nominal Conductor Diameter mm 1.1 1.3 1.6 Maximum Resistant@20℃ Ω/km 26.3 19.3 12.9 Mutual Capacitance nF/km 75 80 85 Nominal Inductance@1KHz MH/km 0.727 0.686 0.667 Maximum L/R@1KHz μH/Ω 20 25 35 Operating Voltage V 250 250 250
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight :
Construction No. of elements×No. of cores in element×Cross section (mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
2×2×0.75 | 0.6 | 1.1 | 10.2 | 185 |
4×2×0.75 | 0.6 | 1.2 | 12.5 | 240 |
7×2×0.75 | 0.6 | 1.4 | 15.0 | 350 |
8×2×0.75 | 0.6 | 1.4 | 16.3 | 395 |
12×2×0.75 | 0.6 | 1.5 | 19.5 | 540 |
16×2×0.75 | 0.6 | 1.6 | 21.8 | 690 |
19×2×0.75 | 0.6 | 1.7 | 23.2 | 780 |
24×2×0.75 | 0.6 | 1.8 | 26.7 | 985 |
32×2×0.75 | 0.6 | 2.1 | 29.6 | 1225 |
2×3×0.75 | 0.6 | 1.2 | 12.0 | 205 |
3×3×0.75 | 0.6 | 1.2 | 13.1 | 265 |
4×3×0.75 | 0.6 | 1.3 | 14.4 | 320 |
7×3×0.75 | 0.6 | 1.3 | 17.4 | 475 |
8×3×0.75 | 0.6 | 1.5 | 19.5 | 590 |
12×3×0.75 | 0.6 | 1.6 | 22.9 | 745 |
16×3×0.75 | 0.6 | 1.7 | 25.6 | 965 |
19×3×0.75 | 0.6 | 1.8 | 27.2 | 1095 |
24×3×0.75 | 0.6 | 2.0 | 31.6 | 1405 |
2×2×1.0 | 0.6 | 1.1 | 10.7 | 210 |
4×2×1.0 | 0.6 | 1.1 | 13.3 | 285 |
7×2×1.0 | 0.6 | 1.4 | 16.0 | 415 |
8×2×1.0 | 0.6 | 1.4 | 17.3 | 465 |
12×2×1.0 | 0.6 | 1.6 | 20.8 | 645 |
16×2×1.0 | 0.6 | 1.7 | 23.3 | 825 |
19×2×1.0 | 0.6 | 1.8 | 24.7 | 940 |
24×2×1.0 | 0.6 | 1.9 | 28.8 | 1200 |
32×2×1.0 | 0.6 | 2.3 | 31.8 | 1495 |
3×3×1.0 | 0.6 | 1.2 | 14.0 | 310 |
4×3×1.0 | 0.6 | 1.4 | 15.3 | 380 |
7×3×1.0 | 0.6 | 1.6 | 18.6 | 570 |
12×3×1.0 | 0.6 | 1.6 | 24.4 | 900 |
16×3×1.0 | 0.6 | 1.7 | 27.3 | 1160 |
19×3×1.0 | 0.6 | 1.9 | 29.0 | 1325 |
24×3×1.0 | 0.6 | 2.1 | 33.7 | 1700 |
2×2×1.5 | 0.7 | 1.2 | 12.1 | 275 |
4×2×1.5 | 0.7 | 1.3 | 15.2 | 380 |
7×2×1.5 | 0.7 | 1.5 | 18.4 | 565 |
8×2×1.5 | 0.7 | 1.5 | 20.0 | 640 |
12×2×1.5 | 0.7 | 1.7 | 24.3 | 895 |
16×2×1.5 | 0.7 | 1.8 | 27.2 | 1150 |
19×2×1.5 | 0.7 | 1.9 | 28.6 | 1295 |
24×2×1.5 | 0.7 | 2.1 | 33.5 | 1670 |
32×2×1.5 | 0.7 | 2.3 | 37.0 | 2095 |
2×3×1.5 | 0.7 | 1.3 | 15.0 | 310 |
3×3×1.5 | 0.7 | 1.3 | 16.0 | 420 |
4×3×1.5 | 0.7 | 1.4 | 17.7 | 515 |
7×3×1.5 | 0.7 | 1.6 | 21.5 | 785 |
8×3×1.5 | 0.7 | 1.6 | 23.5 | 930 |
12×3×1.5 | 0.7 | 1.8 | 28.5 | 1255 |
16×3×1.5 | 0.7 | 1.9 | 31.9 | 1630 |
19×3×1.5 | 0.7 | 2.0 | 33.8 | 1855 |
24×3×1.5 | 0.7 | 2.2 | 39.3 | 2375 |
