Application :

• These cables are used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor, suitable for use in control, auxiliary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Construction :

• Conductors	Stranded tinned copper wires to IEC 60228 Class 5.
  Insulation	Halogen free compound.
  Sheath	Halogen free compound.

Standards :

• NF F 63-826 NF F 16-101 BS 6853

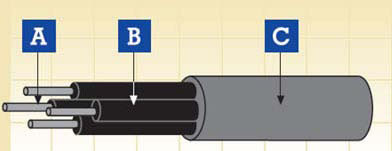

  	A. Conductor       B. Insulation     C. Sheath

Electrical & Mechanical Properties :

• Nominal Voltage	500V
  Maximum Conductor Temperature	90°C/105°C
  Temperature Range	-25°C ~ +90°C
  Bending Radius	4 × Overall Diameter

Fire Performance in general :

• EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
  EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
  EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
  EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
  EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
  EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
  NF F 63 808; BS6853; NF F 16 101	Smoke index

FRF-SW-1.5S 1500V :

• Number of Cores	Nominal Cross Sectional Area	Number & Nominal Diameter of Strands	Nominal Sheath Thickness	Overall Diameter		Weight
  				Min.	Max.
  -	mm²	No/mm	mm	mm	mm	kg/km
  2	1.5	30/0.25	1.0	8.6	9.9	115
  4	1.5	30/0.25	1.1	10.1	11.4	160
  7	1.5	30/0.25	1.1	11.9	13.3	245
  13	1.5	30/0.25	1.2	16.5	18.0	425
  19	1.5	30/0.25	1.2	18.3	19.9	675
  37	1.5	30/0.25	1.5	25.1	27.1	1170
  2	2.5	50/0.25	1.1	10.0	11.3	185
  4	2.5	50/0.25	1.2	11.7	13.1	275
  13	2.5	50/0.25	1.4	19.5	21.1	750
  19	2.5	50/0.25	1.4	21.6	23.4	980



Corona Resistant	Highly Flexible	UV Resistant	Ozone Resistant	Abrasion Retardant	Cold- resistant



Resistance To Soldering Heat	Acid&Alkaline Resistant	IRM 903 Fuel Oil Resistant	IRM 902 Mineral Oil Resistant	Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4	Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1



Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853	Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813	Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816	Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815
