FIREROL Standard Wall Single Core Unsheathed Cables 500V, 1000V, 1500V, 3000V
NF F 63-826 (FRF-SW-05SU,FRF-SW-1SU,FRF-SW-1.5SU,FRF-SW-3SU)

Application :

  • These cables are used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor, suitable for use in control, auxiliary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Construction :

  • Conductors Stranded tinned copper wires to IEC 60228 Class 5.
    Insulation Special halogen free compound.

Standards :

  • NF F 63-826
    NF F 16-101
    BS 6853

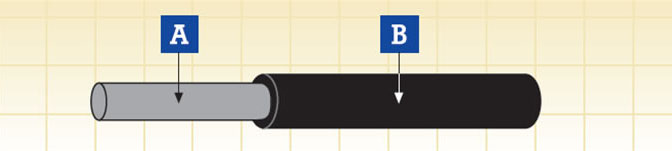

    A. Conductor                             B. Insulation

Electrical & Mechanical Properties :

  • Nominal Voltage 500V, 1000V, 1500V, 3000V
    Maximum Conductor Temperature 90°C/105°C
    Temperature Range -25°C~90°C
    Bending Radius 4 × Overall Diameter

Fire Performance in general :

  • EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
    EN 50266-2-4 + EN 50305; IEC 60332-3-24;
    NF C 32-070 2.2 (C1); VDE 0472 Teil 804
    Vertical flame spread of vertically mounted bunched wires or cables
    EN 50268-2; IEC 61034-2; NF C 32-073 ;
    NF C 20-902; NF F 16 101; VDE 0472 Teil 816
    Low Smoke Emission
    EN 50267-2-1; IEC 60754-1; NF C 32-074;
    NF C 20-454; VDE 0472 Teil 815
    Halogen Free

    EN 50267-2-2/3; IEC 60754-2; NF C 32-074;

    NF C 20-453; VDE 0472 Teil 813

    Low Corrosivity (Acidity & Conductivity)
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853
    Low Toxicity
    NF F 63 808; BS6853; NF F 16 101 Smoke index

FRF-SW-05SU 500V :

  • Nominal Cross
    Sectional Area
    Number & Nominal
    Diameter of Strands
    Nominal Insulation
    Thickness
    Overall Diameter Weight
    Min. Max.
    mm2 No/mm mm mm mm kg/km
    1.0 32/0.20 1.3 3.8 4.5 26
    1.5 30/0.25 1.3 4.1 4.8 33
    2.5 50/0.25 1.3 4.5 5.2 43
    4.0 56/0.30 1.3 5.0 5.8 59
    6.0 84/0.30 1.4 5.7 6.5 82
    10.0 80/0.40 1.5 6.9 8.1 135
    16.0 126/0.40 1.5 8.2 9.2 210

FRF-SW-1SU 1000V :

  • Nominal Cross
    Sectional Area
    Number & Nominal
    Diameter of Strands
    Nominal Insulation
    Thickness
    Overall Diameter Weight
    Min. Max.
    mm2 No/mm mm mm mm kg/km
    1.5 30/0.25 1.5 4.4 5.2 42
    2.5 50/0.25 1.5 4.8 5.6 55
    4.0 56/0.30 1.5 5.4 6.2 72
    6.0 84/0.30 1.6 6.1 6.9 96
    10.0 80/0.40 1.6 7.0 8.3 154
    16.0 126/0.40 1.6 8.3 9.4 218
    25.0 196/0.40 1.7 9.8 11.0 316
    35.0 276/0.40 1.8 11.2 12.5 440
    50.0 396/0.40 1.9 13.0 14.3 580
    70.0 360/0.50 2.0 14.7 16.3 830
    95.0 475/0.50 2.0 16.6 18.4 1040
    120.0 608/0.50 2.1 18.6 20.5 1310

FRF-SW-1.5SU 1500V :

  • Nominal Cross
    Sectional Area
    Number & Nominal
    Diameter of Strands
    Nominal Insulation
    Thickness
    Overall Diameter Weight
    Min. Max.
    mm2 No/mm mm mm mm kg/km
    1.5 30/0.25 2.3 6.0 6.8 59
    2.5 50/0.25 2.3 6.4 7.2 73
    4.0 56/0.30 2.3 7.0 7.8 91
    6.0 84/0.30 2.3 7.5 8.3 120
    10.0 80/0.40 2.3 8.4 9.7 160
    16.0 126/0.40 2.3 9.7 10.8 235
    25.0 196/0.40 2.3 11.0 12.2 330
    35.0 276/0.40 2.4 12.4 13.7 480
    50.0 396/0.40 2.5 14.2 15.5 610
    70.0 360/0.50 2.7 16.1 17.7 860
    95.0 475/0.50 2.7 18.0 19.8 1070
    120.0 608/0.50 2.8 20.0 21.9 1340
    150.0 756/0.50 2.8 21.8 23.8 1620
    185.0 925/0.50 2.9 23.7 25.9 1940
    240.0 1221/0.50 3.1 26.6 29.1 2550
    300.0 1525/0.50 3.45 29.4 31.9 2950

FRF-SW-3SU 3000V :

  • Nominal Cross
    Sectional Area
    Number & Nominal
    Diameter of Strands
    Nominal Insulation
    Thickness
    Overall Diameter Weight
    Min. Max.
    mm2 No/mm mm mm mm kg/km
    2.5 50/0.25 3.1 8.0 8.8 94
    4.0 56/0.30 3.1 8.5 9.5 124
    6.0 84/0.30 3.1 8.8 9.9 135
    10.0 80/0.40 3.1 10.0 11.3 200
    16.0 126/0.40 3.1 11.2 12.4 265
    25.0 196/0.40 3.1 12.5 13.8 375
    35.0 276/0.40 3.2 13.9 15.3 493
    50.0 396/0.40 3.3 15.7 17.2 680
    70.0 360/0.50 3.4 17.5 19.1 930
    95.0 475/0.50 3.5 19.5 21.4 1066
    120.0 608/0.50 3.6 21.6 23.5 1530
    150.0 756/0.50 3.6 23.3 25.5 1740
    185.0 925/0.50 3.7 25.2 27.6 2100
    240.0 1221/0.50 3.9 28.1 31.7 2460
    300.0 1525/0.50 4.45 31.4 35.0 3050



Impact Resistant
Highly Flexible
UV Resistant
Ozone Resistant
Abrasion Retardant
Cold- resistant



Resistance To
Soldering Heat
Acid&Alkaline
Resistant
IRM 903
Fuel Oil Resistant
IRM 902
Mineral Oil Resistant
Fire Retardant
NF C32-070-2.2(C2)
IEC60332-3-24/EN50266-2-4
Flame Retardant
NF C32-070-2.1(C1)
IEC60332-1-2/EN50265-2-1



Low Toxicity
NF X70-100/NF F63 808
TM1-04/BS 6853
Low Corrosivity
IEC60754-2/EN50267-2-2/3
NF C32-074/VDE 0472-813
Low Smoke Emission
IEC 61034-2 / EN 50268-2
NF C32-073/VDE 0472-816
Zero Halogen
IEC 60754-1/EN 50267-2-1
NF C32-074//VDE 0472-815
