Application :

• These cables are used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor, suitable for use in control, auxiliary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Construction :

• Conductors	Stranded tinned copper wires to IEC 60228 Class 5.
  Insulation	Special halogen free compound.

Standards :

• NF F 63-826 NF F 16-101 BS 6853

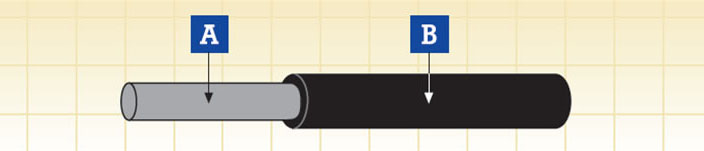

  	A. Conductor                 B. Insulation

Electrical & Mechanical Properties :

• Nominal Voltage	1500V
  Maximum Conductor Temperature	90°C/105°C
  Temperature Range	-25°C ~ +90°C
  Bending Radius	3 × Overall Diameter

Fire Performance in general :

• EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
  EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
  EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
  EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
  EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
  EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
  NF F 63 808; BS6853; NF F 16 101	Smoke index

FRF-SW-1.5SU-EF 1500V :

• Nominal Cross Sectional Area	Number & Nominal Diameter of Strands	Nominal Insulation Thickness	Overall Diameter		Weight
  			Min.	Max.
  mm2	No/mm	mm	mm	mm	kg/km
  10.0	320/0.20	2.3	8.4	9.5	187
  16.0	512/0.20	2.3	9.7	10.8	266
  25.0	800/0.20	2.3	11.0	12.2	354
  35.0	1120/0.20	2.4	12.4	13.7	440
  50.0	705/0.30	2.5	14.2	15.5	613
  70.0	990/0.30	2.7	16.1	17.7	875
  95.0	1340/0.30	2.7	18.0	19.8	1045
  120.0	1690/0.30	2.8	20.0	21.9	1350
  150.0	2123/0.30	2.8	21.8	23.8	1650
  185.0	1470/0.40	2.9	23.7	25.9	2130



Impact Resistant	Highly Flexible	UV Resistant	Ozone Resistant	Abrasion Retardant	Cold- resistant



Resistance To Soldering Heat	Acid&Alkaline Resistant	IRM 903 Fuel Oil Resistant	IRM 902 Mineral Oil Resistant	Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4	Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1



Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853	Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813	Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816	Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815
