Application :

• These cables are used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor, suitable for use in cable harnesses, switchboards and control panels, driver desks etc.

Construction :

• Conductors	Stranded tinned copper wires.
  Insulation	Radiation crosslinkable LSZH compound.
  Screen	Tinned copper braid.
  Sheath	Radiation crosslinkable LSZH compound.

Standards :

• NF F 63-808 NF F 16-101 BS 6853 DIN 5510

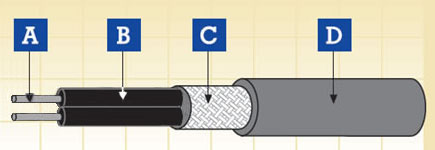

  	A. Conductor     B. Insulation     C. Screen     D. Sheath

Electrical & Mechanical Properties :

• Nominal Voltage	250 V
  Maximum Conductor Temperature	105°C/125°C
  Temperature Range	-40°C~+105°C
  Bending Radius	5 × Overall Diameter

Fire Performance in general :

• EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
  EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
  EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
  EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
  EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
  EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
  NF F 63 808; BS6853; NF F 16 101	Smoke index

FRF-TW-025M-OS 250 V :

• Number of Cores	Nominal Cross Sectional Area	Number & Nominal Diameter of Strands	Overall Diameter		Weight
  			Min.	Max.
  -	mm2	No/mm	mm	mm	kg/km
  2	0.38	19/0.16	3.20	4.00	20.0
  2	0.60	19/0.20	3.70	4.50	32.0
  2	0.93	19/0.25	4.25	5.05	39.5
  2	1.34	19/0.30	4.80	5.60	54.0
  2	1.82	37/0.25	5.55	6.35	66.0
  2	2.61	37/0.30	6.35	7.15	87.0
  2	4.32	61/0.30	7.50	8.30	128.0
  3	0.38	19/0.16	3.55	4.35	30.0
  3	0.60	19/0.20	4.00	4.80	39.0
  3	0.93	19/0.25	4.50	5.30	55.0
  3	1.34	19/0.30	5.10	5.90	66.0
  3	1.82	37/0.25	4.80	6.60	84.0
  3	2.61	37/0.30	6.80	7.60	117.0
  3	4.32	61/0.30	8.10	8.90	182.0
  4	0.38	19/0.16	4.05	4.85	39.0
  4	0.60	19/0.20	4.50	5.30	51.0
  4	0.93	19/0.25	5.00	5.80	70.0
  4	1.34	19/0.30	5.70	6.50	89.0
  4	1.82	37/0.25	6.45	7.25	109.0
  4	2.61	37/0.30	7.65	8.45	157.0
  4	4.32	61/0.30	9.05	9.85	237.0



Corona Resistant	Highly Flexible	UV Resistant	Ozone Resistant	Abrasion Retardant	Cold- resistant



Resistance To Soldering Heat	Acid&Alkaline Resistant	IRM 903 Fuel Oil Resistant	IRM 902 Mineral Oil Resistant	Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4	Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1



Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853	Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813	Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816	Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815
